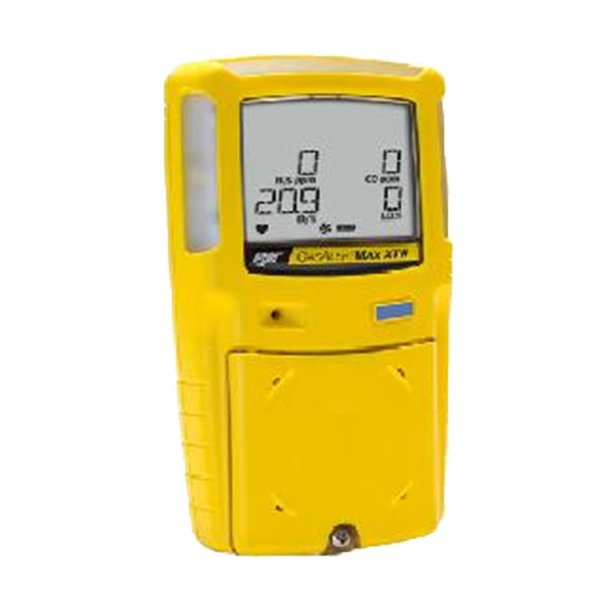

Four-Gas Detector (H2S, CO, O2, Flammable, Audio-Video Alarm)

GAO Tek Four-Gas Detector enables field professionals to detect four gases H2S, CO, O2 and flammable gas effectively with Audio-Video Alarm feature.



SKU: ETC00Z200TD Category:

Overview

Enviro Test Construct’s pumped type and four gas detection is a high performance and reliable device that can be used to monitor four toxic gases. The instrument features a built-in pumped detector and a single button interface which provides simple operation. In order to prevent confusion, the device also offers options that allow users to set up the application that suits them best. By using the new intelligent pump technology, this instrument prevents the probability of obstruction and increase the accuracy of the results. Moreover, the instrument provides the automatic test and calibration system as well as multiple languages, including English, French, German, Spanish and Portuguese. Enviro Test Construct’s pumped type and four gas detection is widely used in the semiconductor industry as it can work in any toxic environment.

Key Features

  • Multiple languages including English, French, German, Spanish and
    Portuguese
  • Single button operation, easy to use
  • Small, comfortable, and can be used in bad field conditions
  • Fleet Manager II allows easy management
  • Smart sample pump technology increases accuracy of the results
  • Audio, visual, and vibration alarm

Technical Specifications

Size5.1 x 2.8 x 2.0 in ( 13.1 x 7.0 x 5.2 cm)
Weight0.70 lbs. (316 g)
Temperature4 to 122°F (-20 to 50 °C)
Humidity range10% to 100% relative humidity (non-condensable)
Alarm95 dB
Level EMI/RFIEMC guideline with 89/336 / EEC
Humidity10% to 100%
Battery13 hours @ 32°F / 0°C 10 hours @ 4°F / -20°C
Pump range66ft. (20 m)
Certification and LicensingClass I, Div. 1, Gr. A, B, C, D

IECEx: Ga Ex ia IIC T4

ATEX: II 1 G Ga Ex ia IIC T4

Level EMI/RFIEMC guideline with 89/336 / EEC

IP66 / 67
