Features
- Anti-interference
- LCD display Intuitive data, real-time HD display of data, precise control

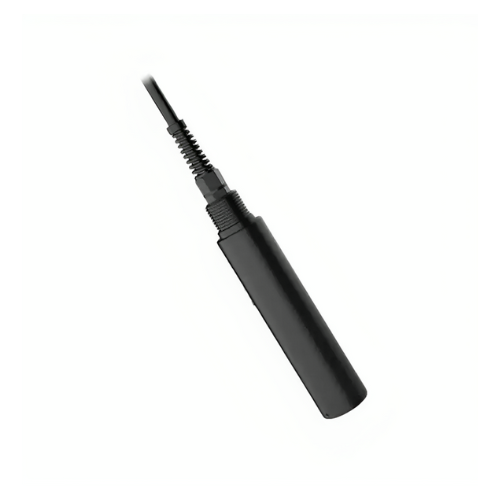

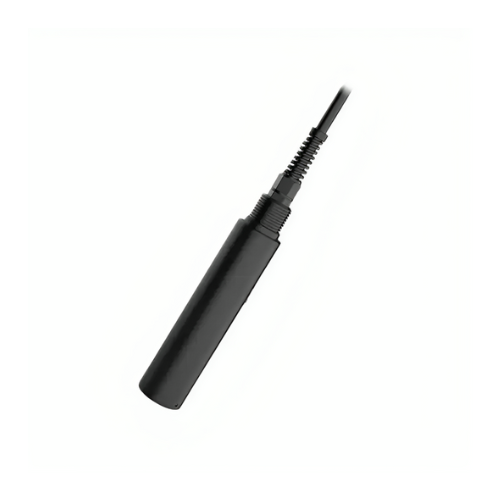

- Probes High precision, high sensitivity, IP68 protection
- Power supply: 12 V or 24 V, DC ± 10 %, 10 MA
Technical Specification
| Output | RS485 MODBUS RTU |
| Range | 0 NTU to 1000 NTU or 0 NTU to 200 NTU |
| Accuracy | 2 % to 5 % FS |
| Resolution | 0.1 NTU, 32.1 ℉ (0.1 ℃) |
| Response time | 30 s T90 |
| Temperature compensation | Automatic temperature compensation (PT1000) |
| Protection class | IP68; Water depth 65.6 ft (20 m) |
| Cable length | 16.4 ft (5 m) (default), customizable |
| Output signal | RS485, MODBUS RTU |
| Measurement method | 194 ℉ (90 ℃) scattered light method |
| Cable length | 16.4 ft (5 m) (default), customizable |
| Sensor housing material | PVC or titanium alloy (other) |
| Power supply | 12 VDC or 24 VDC ± 10 %, 10 MA |
| Size | 1.1 in x 6.5 in (30 mm x 166.5 mm) |
