Name: Enviro Test Construct Underground Cable Tracer and Pipe Locator -
SKU: ETCGFL-131

Overview

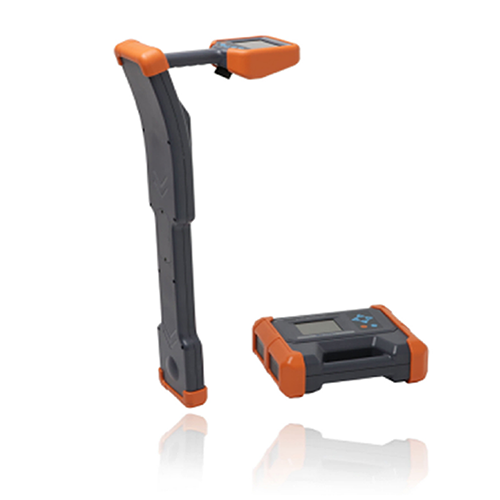

Enviro Test Construct Underground Cable Tracer And Pipe Locators are high performance underground metallic pipe locating system. They consist of a transmitter and a receiver, and can be used to do route tracing, pipe exploration and depth measurement of the underground cables and metallic pipes. They can also be used to identify target cable from a bunch of cables, locate the pipe insulation damage and part type cable fault.

Technical Specifications

Transmitter
Output	Direct Connection output, Clamp Coupling Output(optional), Radiation output
Output Frequency	640 Hz (Fault finding booster optional), 1280 Hz (complex frequency), 10 kHz, 33 kHz, 82 kHz, 197 kHz
Output power	Max. 10 W, 10 levels adjustable, auto impedance matching
Direct connection voltage	Max. 150 Vpp
HMI	12.60 in x 9.45 in (320 mm x 240 mm) LCD
Power supply	4 x built-in 18650 Li-on batteries, standard 7.4 V, 6.8 Ah

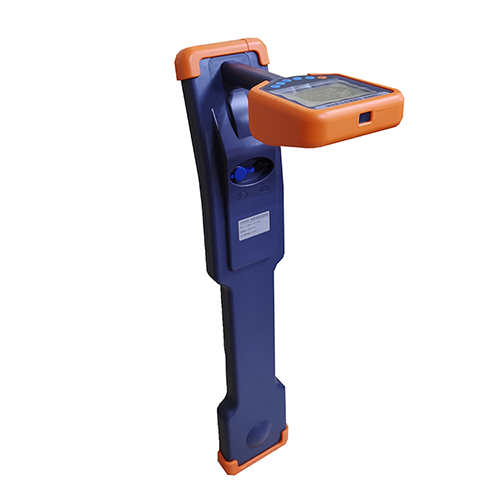

Receiver
Input	Internal receiving loop, Clamp (optional), sensor (optional), fault locating A Frame (optional)
Receiving frequency	Active detection frequency: 640 Hz, 1280 Hz, 10 kHz, 33 kHz, 82 kHz, 197 kHz. Power frequency passive detection frequency: 50 Hz or 60 Hz and 250 Hz or 300 Hz (user configurable). Radio frequency passive detection frequency bands: center frequencies are 10 kHz, 33 kHz, 82 kHz, respectively
Pipe detection mode	Wide peak method, narrow peak method, valley method
Cable identification mode	Receiving Clamp (optional) intelligent identification and sensor (optional) identification
HMI	12.60 in x 9.45 in (320 mm x 240 mm) LCD
Charger	Input: AC 100 V to 240 V, 50 Hz or 60 Hz Output: DC 8.4 V, 2 A
Working environment	Temperature: 14 °F to 104 °F (-10 ℃ to 40 ℃) Humidity: 5% to 90% Elevation: <2.79 mi (4.5 km)
Volume	Transmitter: 11.02 in x 8.66 in x 3.54 in (280 mm x 220 mm x 90 mm) Receiver: 26.77 in x 10.91 in x 4.72 in (680 mm x 277 mm x 120 mm)
Weight	Transmitter: 5.07 lb (2.3 kg) Receiver: 4.40 lb (2 kg)
