Overview

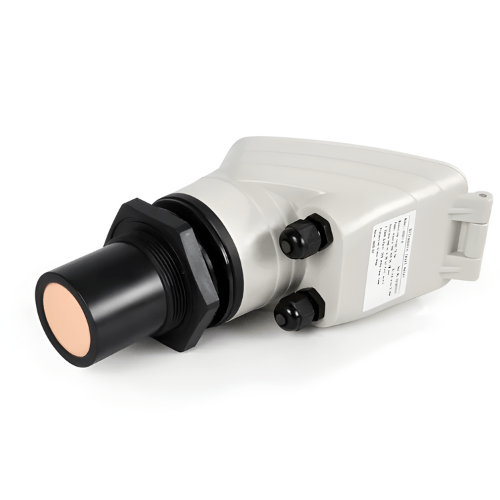

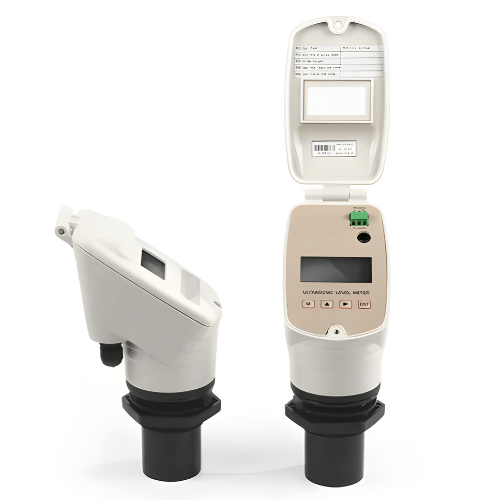

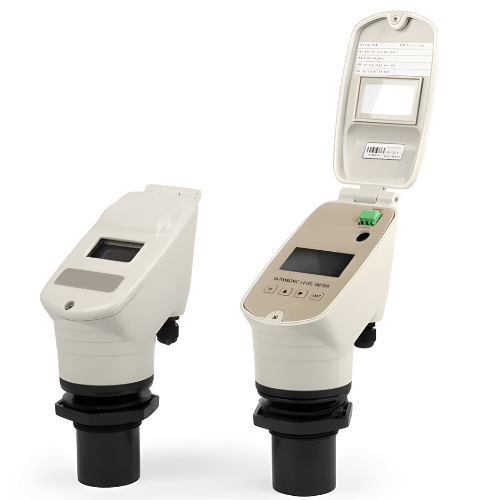

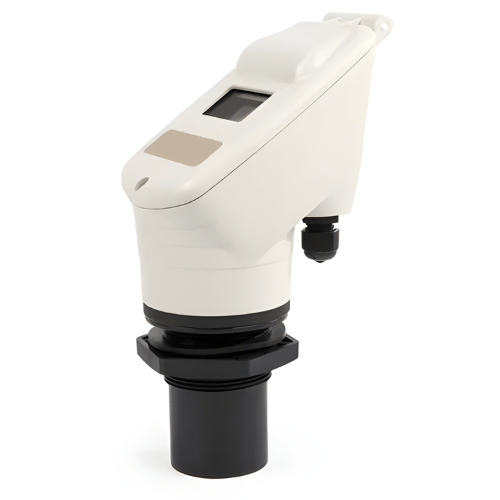

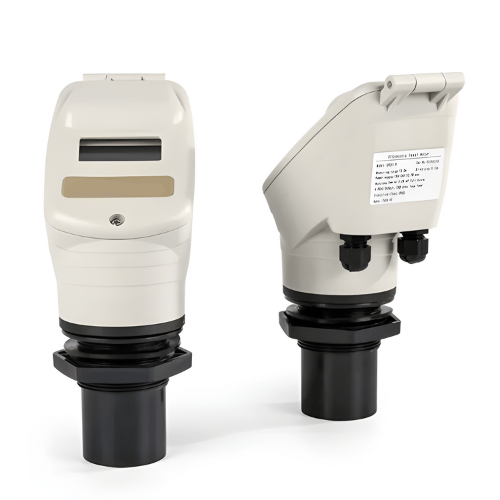

Enviro Test Construct ultrasonic level transmitter includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature.
Features
- For circuit design
- Patent sonic-wave intelligent technology software
- Our sonic-wave intelligent patent technology
- The meter is a non-contact one
- The meter’s all input and output lines
Technical Specifications
| Liquid Level Range | 0 in to 590.55 in (0 m to 15 m) |
| Blind Area | 9.84 in to 23.62 in (0.25 m to 0.6 m) |
| Accuracy | 0.3 % |
| Direction Angle | 4 to 6 (full angle) |
| Pressure | Less than four atmospheric pressure |

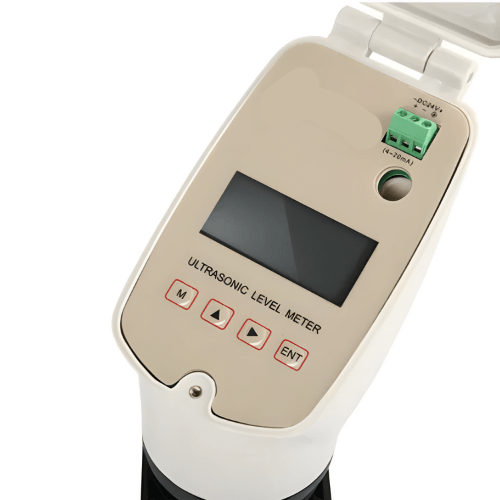

| Display | With LCD to display liquid levels. |
| Analog Output | 4 Ma to 20 Ma |
| Digital Output | RS485, Agreement Modbus or customization agreement |
| Power Supply Voltage | DC 24 V or AC 220 V, lightningproof device installed inside |
| Protection Grade | IP65 |
| Ambient Temperature | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
