Overview

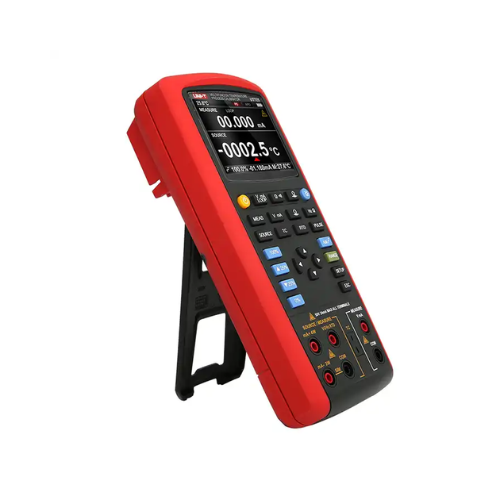

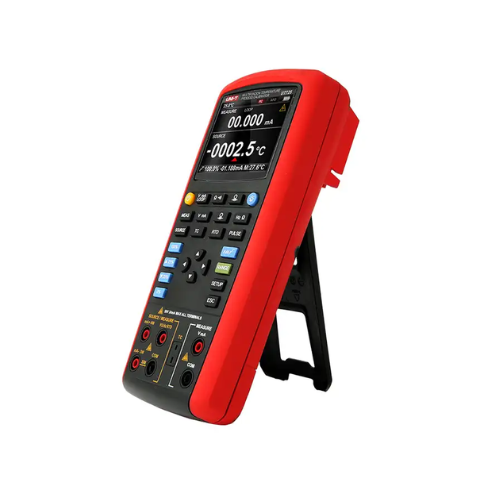

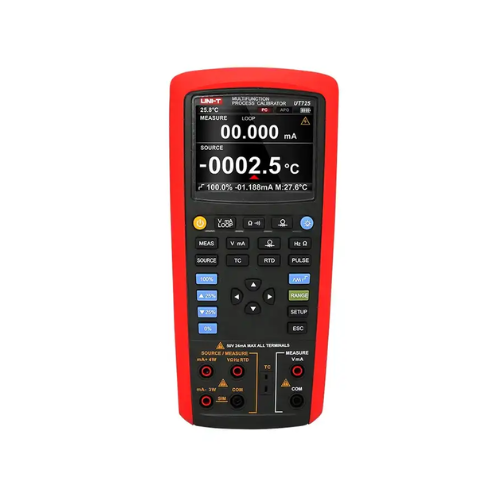

Enviro Test Construct temperature process calibrator and loop process calibrator function. You can easily measure and source most of the process parameter mA, volts, temperature, frequency, ohms in one tool.
Technical Specifications
| DC voltage | 50 mV or 500 mV or 50 V |
| Resistance | 500 Ω or 5000 Ω |
| Frequency | 100 Hz or 1 kHz or 10 kHz or 100 kHz |
| RTDs | Pt 100 or Pt 200 or Pt 500 or Pt 1000 or Cu 10 or Cu 50 or Cu 100 or Pt 100 to 392 or Pt 100-JIS or Ni 120 |
| Pulses | 1 kHz to 15 kHz (1 period to 100000 periods) |
| Power | 1.2 V x 6 AA rechargeable battery |
| Display count | 20000 |
| Operating temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Product size | 7.67 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) |
| Product net weight | 1.43 lb (650 g) |
