Overview

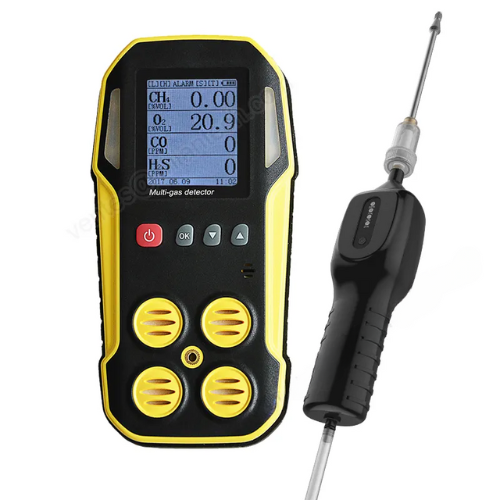

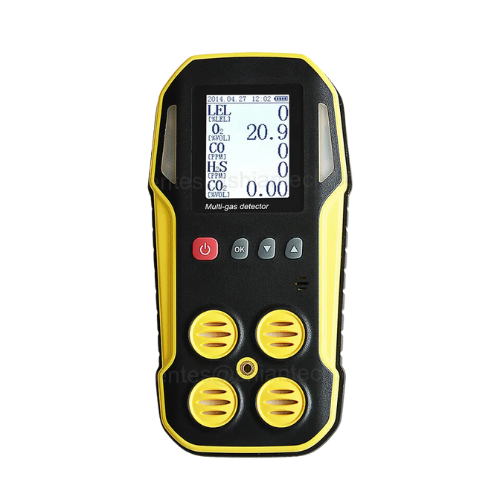

Enviro Test Construct Portable Multi Gas Analyzer for Toxic Gases Detector is extensively used in petroleum, petrol chemistry, chemical industry, gas, coal, metallurgy and power system; safety detection in municipal administration, communication and traffic tunnel construction; electronics and semiconductor industry, animal husbandry, biogas plant & biogas digester and other places where toxic and harmful gases exist. It can be also used in the food & beverage industry, agriculture, medical industry, lab, etc. for related gas analyzer.
Features
- Detects combustible, toxic gases, and oxygen (5 gas analyzer)
- Large color LCD screen for clear display
- Offers both natural diffusion and pump sampling
- Multi-gas functionality for diverse applications
- Visible and audible alarms for safety
- Optional continuous data logging of up to 1900 data points
- Compact 5.12 in x 2.60 in x 1.18 in (13 cm x 6.6 cm x 3 cm), lightweight 10.58 oz (300 g)
- Includes a built-in sampling pump for convenience
Technical Specifications
| Detecting Gas | Combustible, toxic gases, oxygen (5 gases) |
| Display | Big LCD, color screen |
| Sampling Method | Natural Diffusion, Pump Sampling |
| Feature | Multi Gas Analyzer |
| Alarm Type | Visible, Audible |
| Data Logging (Optional) | Continuously data logging 1900 data |
| Sampling Pump | Yes |
| Alarms | Audible: Buzzer with ≥ 80 dB Audible Visible: Flashing red LED, ≥ 65.62 ft (≥ 20 m) Visible |
| Alarm Point | Fully adjustable |
| Continuous Working Time | ≥ 13 hours |
| Display | Liquid Crystal Display (LCD) |
| Battery Model | PL 123450, 3.7 V per 1500 mA |
| Charging Time | 4 hours to 5 hours |
| Dust and Water Resistance | IP 65 |
| Ex Sign | ExibdⅠ |
| Size | 5.12 in x 2.60 in x 1.18 in (13 cm x 6.6 cm x 3 cm) |
| Weight | 10.58 oz (300 g) |
