Overview

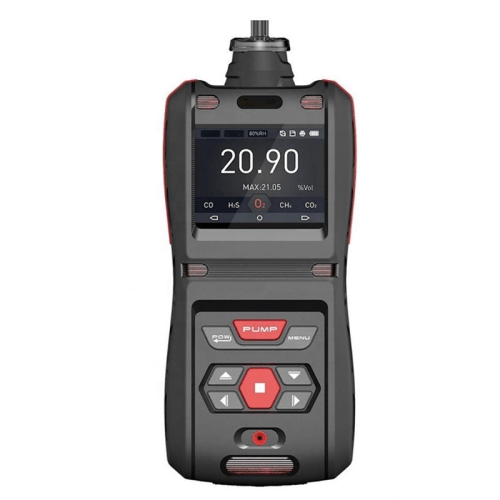

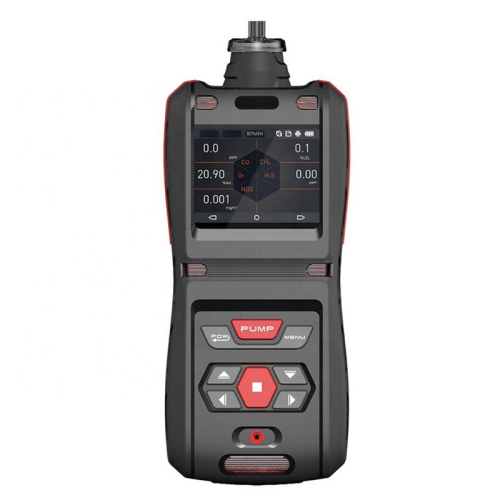

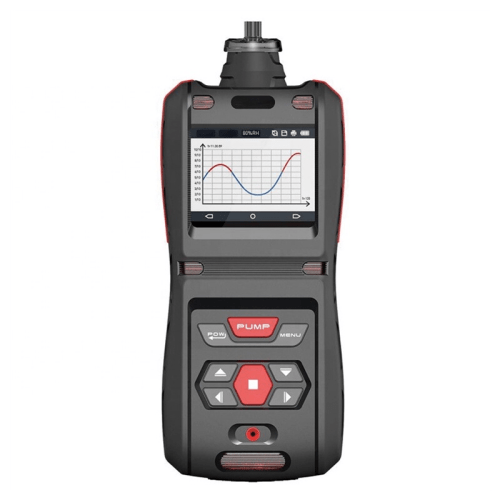

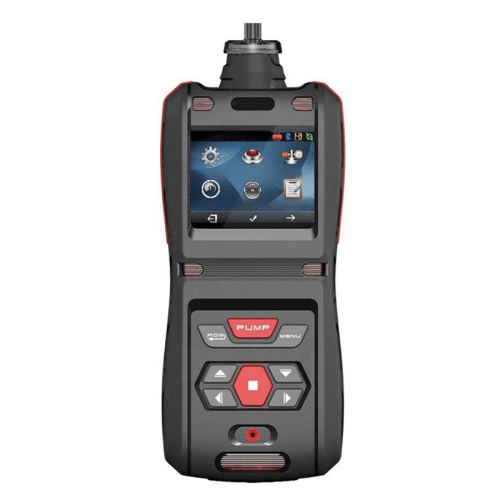

Enviro Test Construct Portable 5-in-1 Gas Detector is used for quickly detecting various gas concentrations, measuring temperature and humidity, and alarming when exceeding the standard. PLT500 handheld five-in-one gas detector uses a 2.5-inch high-definition color screen to display the concentration in real time and uses gas sensors of famous brands in the current industry. The main detection principles are electrochemistry, infrared, catalytic combustion, thermal conductivity, and PID photo ion. This has advanced circuit design and mature kernel algorithm processing and has obtained many software patents and appearance patents. This product can be used to detect the gas concentration in pipelines or confined spaces, atmospheric environment, as well as various gas leaks and high concentration of various background gases such as nitrogen or oxygen. There are more than500 kinds of detection. The hand-held five-in-one gas detector is used for quickly detecting various gas concentrations, measuring temperature and humidity, and alarming when exceeding the standard.
Features
- Waterproof, dustproof, shockproof
- HD color display friendly for user
- Large capacity data storage function
- 5500 mA large capacity battery
- Multi directional alarm status
- Mobile rapid and accurate detection
- Three display modes can be switched
- Multiple ancillary functions
Technical Specifications
| Detect gas | Compound gas (carbon monoxide CO, hydrogen sulfide H2S, oxygen O2, combustible gas Ex, carbon dioxide CO2) | ||||||||
| Detection range | CO: 0 ppm to 1000 ppmH2S: 0 ppm to 100 ppm O2: 0% Vol to 30% Vol O2: 0 ppm to 5000 | ||||||||
| Resolution | CO: 0.1 ppmH2S: 0.01 ppm O2: 0.01% Vol CO2: 1 ppm | ||||||||
| Test method | Built-in pumping type, flow rate 500 ml per minute. | ||||||||
| Display mode | 2.5 in HD color display, 8 key operations. | ||||||||
| Detection accuracy | ≤±2% FS | ||||||||
| Linearity | ≤±2% | ||||||||
| Repeatability | ≤±2% | ||||||||
| Alarm mode | Sound and light alarm, vibration alarm, visual alarm, sound and light vibration visual alarm, close alarm. | ||||||||
| Response time | T 90≤20 S | ||||||||
| Recovery time | ≤30 S | ||||||||
| Working power supply | DC 3.6 V | ||||||||
| Environment of use | Humidity: -40 °F to 158 °F (-40 °C to 70 °C) Relative humidity ≤0% RH to 99% RH | ||||||||
| Temperature measurement | -40 °F to 248 °F (-40 °C to 120 °C) Accuracy: 32.90 °F (0.5 ℃) | ||||||||
| Humidity measurement | 0% RH to 100% RH Accuracy: 3% RH | ||||||||
| Battery capacity | 3.6 VC D,5500 mA, high-capacity rechargeable polymer battery with overcharge, over discharge, overvoltage, overheat and short-circuit protection functions | ||||||||
| Data storage |
| ||||||||
| Communication interface | USB (Charging and communication), RS232, Infrared communication, automatic identification | ||||||||
| Printer | Optional, external micro wireless infrared thermal printer. | ||||||||
| Interface language | Chinese or English can be set | ||||||||
| Explosion-proof type | Intrinsically safe | ||||||||
| Explosion-proof sign | Exia II CT6 | ||||||||
| Level of protection | IP 67, Prevent rain and short-term soaking and dust. | ||||||||
| Size | 7.08 in x 3.07 in x 1.30 in (180 mm x 78 mm x 33 mm) | ||||||||
