Overview

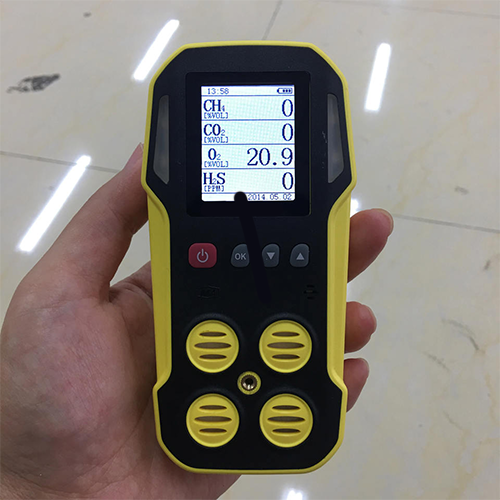

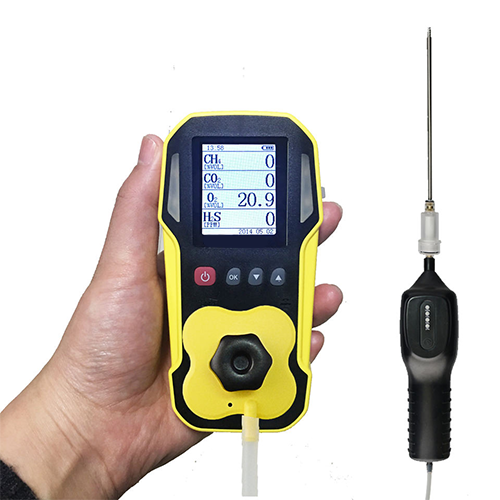

ETC portable biogas analyzer is widely employed for gas safety detection in diverse industries and applications, including petrochemical, municipal administration, electronics, and biogas plants, where toxic gases are a concern.
Features
- Industrial grade
- intrinsically safe gas detector
- Durable, high-performance
- visual alarms
Technical Specification
| Gases detected | CH4, CO2, H2S, O2 |
| Sensor | Infrared sensor and electrochemical sensor |
| Response time | CH4: ≤ 45 S (T 90) CO2: ≤ 45 s (T 90) H2S: ≤ 45 s (T 90) O2: ≤35 s (T 90) |
| Alarms | Audible–buzzer with ≥ 80 dB audible Visible–flashing red LED, ≥ 787.40 in (20000 mm) visible |
| Alarm point | Fully adjustable |
| Data logging (optional) | Continuous Data logging (1900 events at configurable 0.1 min to 10 min intervals) |
| Continuous working time | 13 hrs |
| Display | Liquid Crystal Display (LCD) |
| Charging time | 4 hrs to 5 hrs |
| Dust and water resistance | IP 65 |
| Size | 5.12 in x 2.6 in x 1.18 in (130 mm x 66 mm x 30 mm) |
| Weight | 0.55 lb (250 g) |
