Overview

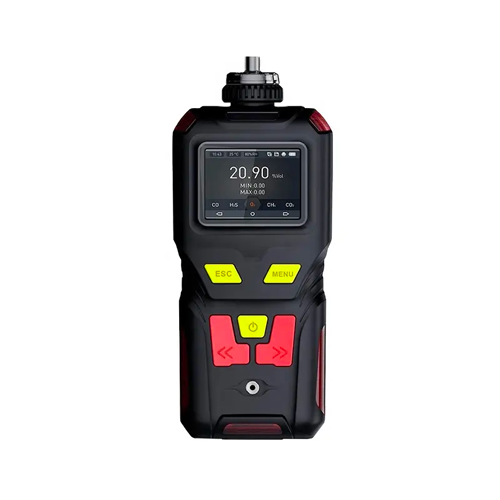

Enviro Test Construct Multi Gas Tester Meter comes with a 2.31 in. (58.6 mm) high-definition color screen for real-time display and features gas sensors from well-known brands in the industry. It is designed for quick detection of various gas concentrations, as well as ambient temperature and humidity measurement. It can trigger alarms if measurements exceed preset limits.
Features
- Built-in pumping measurement
- Integrated water vapor and dust filter
- Supports long-distance sampling
- Works well in high humidity and high dust environments
- Resistant to negative or positive pressure
- Temperature and humidity measurement
- Data storage and communication
- Concentration unit display
- Gas molecular formula and name
- Menu interface with high-definition simulation graphics
Technical Specifications
| Scope of Detection | O2: 0% Vol to 30% VOL O2: 0% Vol to 100% VOL |
| Resolution | 0.01% Vol |
| Sensor Life | 5 years to 6 years |
| Detection Method | Built-in pump suction, flow rate 500 ml/min |
| Display Method | 2.31 in (58.7 mm) 320 x 240 high-definition color screen display, 5 button operation |
| Detection Accuracy | ≤±1% F.S |
| Linearity | ≤±2% |
| Repeatability | ≤±2% |
| Alarm Method | Sound and light alarm Vibration alarm Visual alarm Sound and light + vibration + visual alarm Shut off the alarm |
| Response Time | ≤20 S |
| Recovery Time | ≤30 S |
| Power Supply | DC 3.6 V |
| Battery Capacity | 3.6 V DC, 4500 mAh |
| Use Environment | Temperature: -40 °F to 158 °F (-40 ℃ to +70 ℃) Relative Humidity: ≤0% RH to 99% RH (built-in filter can be used in high humidity or high dust environments) |
| Sample Temperature | -40 °F to 158 °F (-40 ℃ to +70 ℃) |
| Temperature Measurement | -40 °F to 248 °F (-40 ℃ to +120 ℃) Accuracy: 32.9 °F (0.5 ℃) |
| Humidity Measurement | 0% RH to 100% RH, Accuracy: 3% RH |
| Data Storage | Standard 100,000 data capacity with options for history viewing, deletion, or data export |
| Explosion-Proof Type | Intrinsic safe |
| Explosion-Proof Mark | ExdⅡCT 6 |
| Protection Level | IP 65, dust and splash-proof |
| Dimensions | 6.2 in x 2.7 in x 1.10 in (160 mm × 70 mm × 28 mm) |
| Weight | 1.102 lb. (300 g) |
