Overview

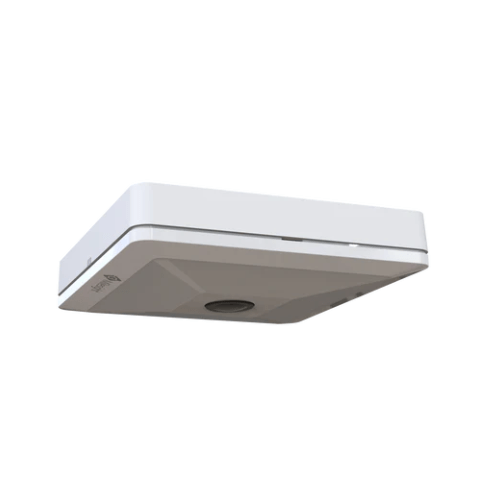

Enviro Test Construct Indoor Workplace Sensor is a smart device designed for monitoring indoor environmental conditions. It measures parameters like temperature, humidity, air quality, and occupancy levels. This sensor is used to ensure a comfortable, safe, and efficient indoor workspace environment, making it ideal for office buildings, factories, and commercial spaces.
Features
- Indoor environment monitoring
- Workspace optimization
- Real-time data
- Versatility for various spaces
- Safety and comfort assurance.
Technical Specifications
| Names | Protocol | v1.0.2/v1.0.3/v1.1 |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 | |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) | |
| Sensitivity | -137 dBm @300 bps | |
| Mode | OTAA/ABP Class A | |
| People Counting | Field of View | 112 ° Horizontal, 190 ° Vertical |
| Detection Range | 236.22 in x 314.96 in = 516.66 ft (6 m × 8 m) = 48 m² (At the height of 118.11 in (3 m)) | |
| Detection Accuracy | >95% | |
| Advanced Custom Setting | Up to 12 mapped regions for detection | |
| Interface | Wi-Fi | IEEE 802.11 b/g/n, 2.4 GHz, only support configuration |
| Button | 1 × Reset Button, 1 × Wi-Fi Button | |
| LED Indicators | 1 × Wi-Fi | |
| Power Input | 1 × Type-C | |
| Physical Characteristics | Power Supply | 5 V / 1.5 A by Type-C Port |
| Operating Temperature | 23 °F to 131 °F (-5 °C to +55 °C) | |
| Storage Temperature | -4 °F to 140 °F (-20 °C to +60 °C) | |
| Relative Humidity | 0% to 95% (non-condensing) | |
| Colour | Black/White (Optional) | |
| Dimension | 3.35 in × 3.35 in × 0.79 in (85 mm × 85 mm × 20 mm) | |
| Installation | Ceiling Mounting |
