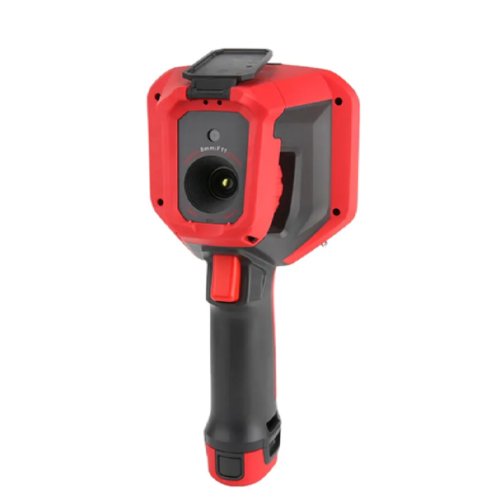

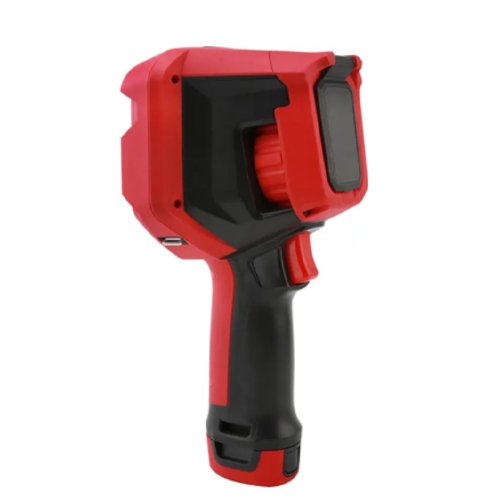

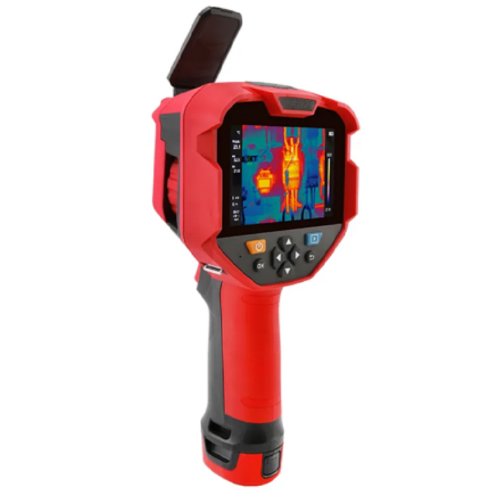

Name: Enviro Test Construct Handheld Infrared Thermal Imaging Instrument - Support 3D Noise Reduction -
SKU: ETCITACTI-122

Features

Original resolution 160 x 120, high sensitivity vanadium oxide uncooled detector
Support timing and temperature difference shutter correction
Support 3D noise reduction, image details enhancement function
Support 4 kinds of false color adjustable
Support center point, maximum temperature, minimum temperature
measurement
Temperature measurement range: 86 ℉ to 113 ℉ (30 °C to 45 °C)
Temperature measurement accuracy: 28.4 °F to 35.6 °F (± 2 °C) (or 2 % of the range), take the maximum
Standby time > 8 h, support automatic shutdown power saving mode
Standard 8G memory card, support expansion, up to 128 GB
Picture Stores full-screen temperature measurement information, supporting offline temperature measurement analysis (used with clients)

Technical Specifications

Detector type	Uncooled vanadium oxide micro radiation calorimeter
Detector resolution	160 × 120
The response wave band	8 µm to 14 µm
Pixel Size	17 um
NETD (Noise equivalent temperature difference)	< 50 mk (@25°C.F#=1.0)
Focal length of thermal imaging lens	f3.1 There is no heating in the fixed focus
Field angle	38.3 degrees × 50 degrees
Aperture	F1.1
Accuracy	± 0.5 % (maximum)
Temperature measurement range	86 ℉ to 113 ℉ (30 ℃ to 45 ℃)
Temperature measurement unit	Degrees Celsius, Fahrenheit, Kelvin
Maximum image size	160 × 120
frame rate	25 Hz
Display	2.4 in LCD screen (320 x 240)
Picture mode	White Heat, Black Heat, Iron Red, Rainbow
Laser pointer	The laser indicates the temperature measurement area and is activate button
Memory	8 GB Micro SD card
Storage extension	Maximum support 128 GB
Power Interface	Micro USB, Fill continuously
Type of battery	Rechargeable lithium-ion batteries
Recharged time	< 3H @25 C
Battery life	> 8H @25 C
Power Management	The adjustable: Off, 5 minutes, 10 minutes, 20 minutes
Working Humidity	≤ 95 %
Protection grade	IP54
accessories	5 V power adapter, USB cable, wrist strap lanyard, 8 GB microSD card
Storage Temperature	– 40 °F to 158 °F (- 40 ℃ to 70 ℃)
DROP TEST	6.56 feet (2 m)
Minimum measuring distance	5.90 in (15 cm)
Operation Temperature	5 °F to 95 °F (- 15 ℃ to 35 ℃)
Weight	12.34 oz (350 g) (including battery)
