Overview

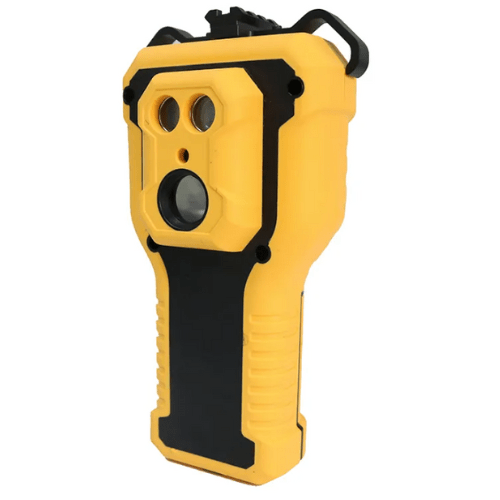

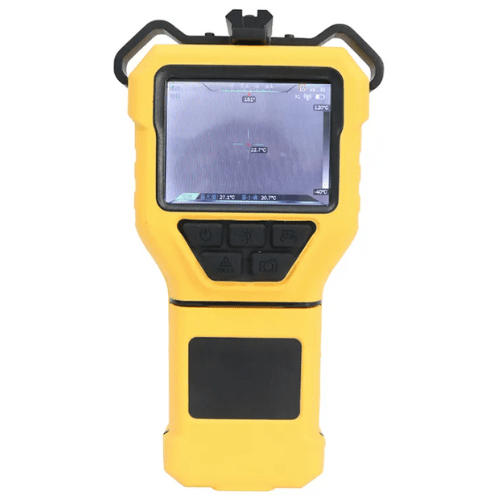

Enviro Test Construct handheld high resolution thermal imager for rescue is a professional thermal imager which is the latest design of our company, equipped with ULIS IR sensor, use high temperature resistant materials, can withstand high temperature of 500 °F, already got explosion-proof certificate.
Features
- Explosion proof
- ULIS sensor
- Lightweight
- PIP (Picture-in-Picture)
- Uncooled FPA sensor
- CMOS visible light
- OEM, ODM, OBM customized support
Technical Specifications
| IR Sensor | ULIS uncooled FPA sensor |
| Resolution | 384 x 288 pixel |
| Working Wave | 8 µm to 14 µm |
| Frame Frequency | 25 Hz |
| Measuring Range | -40 °F to 3632 °F (-40 °C to 2000 °C) |
| Weight | 1.5 lb. (685 g) |
| Dimension | 8.07 in x 4.25 in x 2.7 in (205 mm x 108 mm x 68 mm) |
| NETD | <-459.60 °F (<40 mK) |
| Pixels | 3,200,000 |
| Accuracy | 30.2 °F to 33.8 °F (-1 °C to 1 °C) |
| Working Time | 4 hours |
| Storage | 4 GB |
