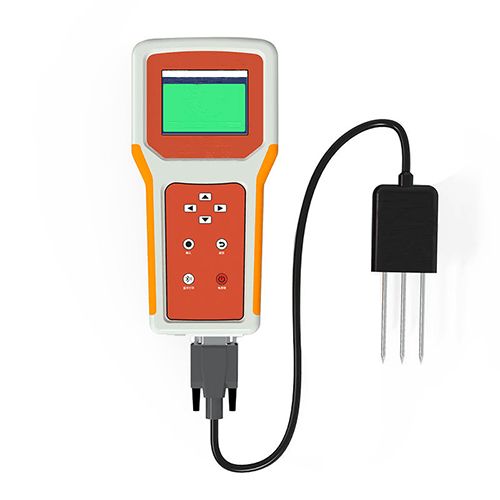

Enviro Test Construct Handheld Digital Temperature Soil Analyzer Moisture

Enviro Test Construct Handheld Digital Temperature Soil Analyzer Moisture is adopts the latest digital integrated circuit technology and international testing technology to design a brand new intelligent handheld tester

SKU: ETCOMA-213 Category:

Overview

Enviro Test Construct Handheld Digital Temperature Soil Analyzer Moisture is adopts the latest digital integrated circuit technology and international testing technology to design a brand new intelligent handheld tester, the recorder uses a large-size full-color LCD display that can display the readings in real time, at the same time, it uses the detection circuit designed by the digital chip of an international manufacturer, which can achieve very high sensitivity and excellent repeatability, and the recorder is integrated storage, recording, and analysis are integrated, and it can be flexibly connected to soil pH sensors, soil electrical conductivity, soil temperature and humidity and other equipment to realize the measurement of various soil parameters



Features

  • The measurement results can be displayed directly, which is simple and convenient
  • with low measurement cost and fast measurement speed
  • A variety of recording methods are optional
  • Large-size color display screen and large-capacity storage
  • One-key export of data, convenient and quick
  • The probe plug-in design ensures accurate measurement and reliable performance



Technical specification

Power supplyBattery powered
Display2.8 in LCD display
Data storage1 million data
Charging time≤8 h
Communication modeUSB, Modbus RTU protocol
Accessible equipment1 to 4 Modbus device combination
Operating voltageDC 3.7 V
Standby timeMore than 8 h continuous
Power supplyDC 3.5 V to 30 V
Conductivity parameter range0 μS/cm to 20000 μS/cm
Conductivity parameter resolution10 uS/cm
Conductivity parameter accuracy±3% in the range of 0 uS/cm to 10000 uS/cm
±5% in the range of 10000 uS/cm to 20000 uS/cm
Soil moisture parameter range0% to 100%
Soil moisture parameter resolution0.1%
Conductivity temperature compensationBuilt in temperature compensation sensor, compensation range 32 °F to 122 °F (0 ℃ to 50 ℃)
Protection levelIP 68
Sealing materialBlack flame-retardant epoxy resin
Output signalRS 485 (Modbus protocol)
Power supply of soil pH sensorDC 5 V to 30 V
Measuring range3 PH to 9 PH
Resolution0.1
Probe materialAnti-corrosion special electrode
Soil temperature parameter range104 °F to 176 °F (40 ℃ to 80 ℃)
Soil temperature parameter resolution32.18 °F (0.1 ℃)
Soil temperature parameter accuracy31.1 °F to 32.9 °F (±0.5 ℃) to 77 °F (25 ℃)
Dimension8.22 in × 3.93 in × 1.41 in
(209 mm × 100 mm × 36 mm)
Weight17.63 oz (500 g)
