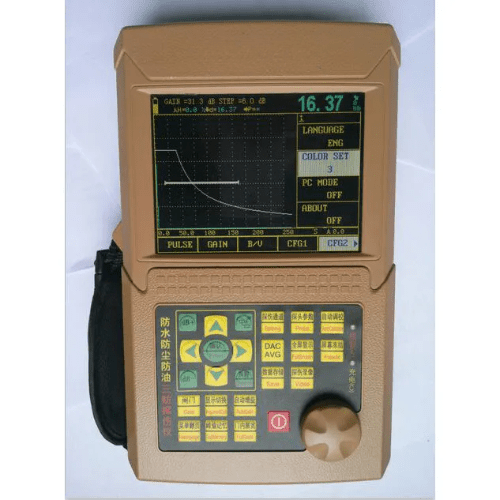

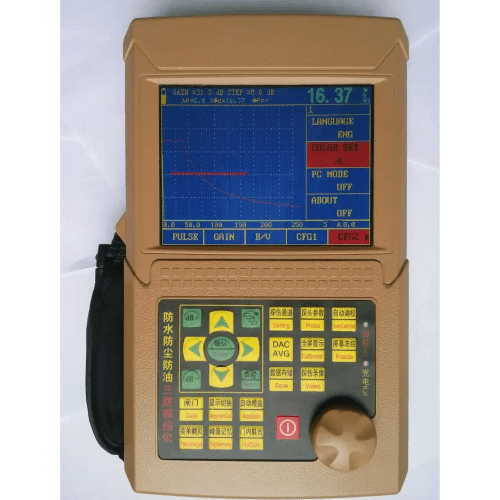

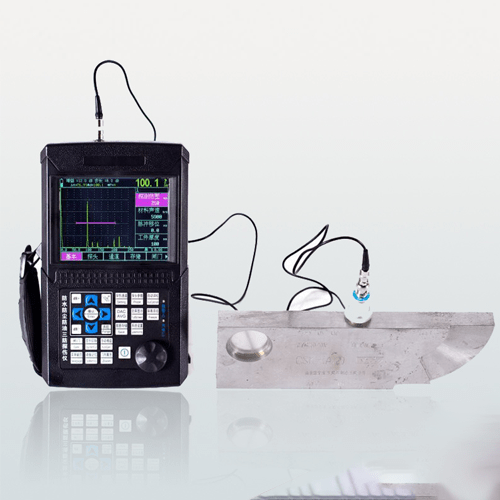

Enviro Test Construct Flaw Crack Detector

Enviro Test Construct flaw crack detector used to fast and convenient, no damage, accurately artifact within a variety of defects such as cracks, weld, porosity, sand holes, the detection, location and folding the inclusion, assessment and diagnosis, widely used in electric power, petrochemical, boiler, pressure vessel, steel structure, military industry, aerospace, rail transport, automobile, machinery, and other fields.

SKU: ETCCKD-195 Category:

Features

  • Both the Angle and K value are input
  • Computer analysis of the echo frequency
  • Energizer state indicator
  • The acoustic and optical alarm of the piston gate
  • The acoustic and optical alarm at the terminal DAC
  • Freeze and thaw the screen
  • Terminal clock display



Technical Specifications

Operating Frequency0.4 MHz to 15 MHz
Vertical Linear Error≤3%
Horizontal Linear Error≤0.1%
Gain110 dB
Resolution>40 dB (5 N 20)
Dynamic Range≥32 dB
Noise Level<8%
Repeated Emission Frequency100 HZ to 1000 HZ
Sound Speed Range1000 m/s to 11000 m/s
Working MethodStraight probe, oblique probe, double crystal, penetrating
Digital Suppression(0% to 80%) , does not affect linearity and gain
Working HoursWorking continuously for more than 10 hrs (lithium battery)
Relative Humidity20% RH to 95% RH
Ambient Temperature-4 °F to 158 °F (-20 °C to 70 °C) (reference value)
Sensitivity Margin>62 dB: 7.87 in (deep 200 mm) (Φ 2 flat bottom hole)
Overall Dimensions0 in to 196.85 in (0 mm to 5000 mm) steel medium / longitudinal wave
Weight9.4 in × 6.10 in × 1.81 in (238 mm × 155 mm × 46 mm)
