Overview

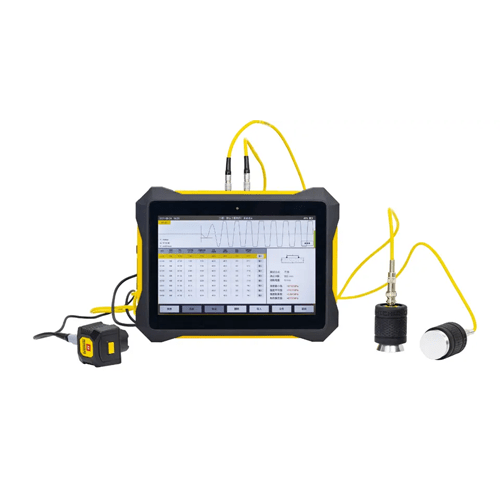

Enviro Test Construct concrete ultrasonic detectors are used for concrete strength detection, internal defects, surface crack depth, width detection, Acoustic parameters and mechanical properties of rock mass and concrete nonmetallic materials
Features
- Automatic interpretation of first wave time and amplitude

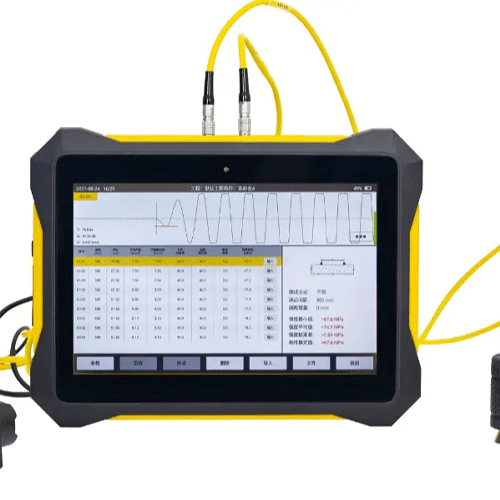

- 10 in / 254 mm highlight touch screen and intelligent interface
- 6 in / 40 mm thin body
- Light weight and easy to carry
- Can manually adjust the sound timeline
- It can replay, cover and delete the waveform of existing measuring points at will
- Low power consumption design, continuous working time is more than 8 hours
- USB flash drive to save data, support software upgrade
Technical Specifications
| Main Control Unit | A8 professional processor |
| Number Of Channels | Two channels |
| Display Mode | 10.1 in color LCD screen (1280 pixels x 800 pixels) |
| Trigger Mode | Automatically triggered |
| Sampling Interval | 0.03 μs to 2000 μs |
| Sampling Length | 512 points to 2048 points multi-file optional |
| Receiving Sensitivity | ≤10 μV |
| Measurement Range of Sound Time | 0 μs to 4000000 μs |
| Amplitude Reading Range | 0 dB to 170 dB |
| Charging Power Supply | AC 100 V to 240 V, 50 Hz 60 Hz, output 12.6 V DC, 3.0 A |
| Transmission Voltage | 125 V, 250 V, 500 V, 1000 V multiple options |
| Pulse Width of Emission | 0.1 μs to 100 μs |
| Storage Capacity | 16 GB |
| Transfer Mode | special U disk |
| Host Volume | 11.2 in x 8.5 in x 1.6 in (283 mm × 216 mm × 41 mm) |
| Host Weight | 4 lb (1.8 kg) |
| Operating Temperature | -4 °F to 140 °F (-20 ℃ to 60 ℃) |
| Depth Measurement Range | 0.2 in to 19.7 in (5 mm to 500 mm) |
| Width Measurement Range | 0.0004 in to 0.4 in (0.01 mm to 10 mm) |
