Features
- Advanced optical measurement system

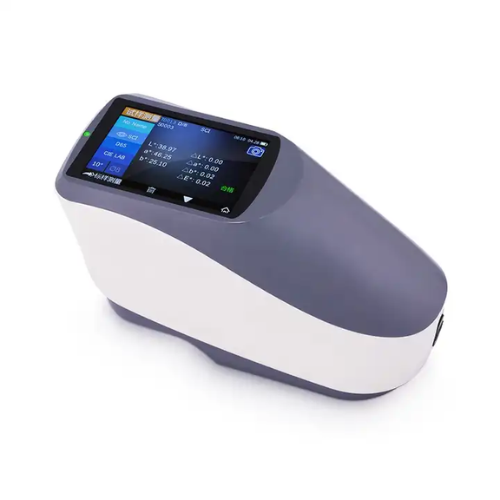

- 3-inch high-brightness LCD capacitive touch screen displays measurement data
- Support 16G SD card data storage
- Magnetic calibration method, more convenient
Technical Specifications
| Battery Power | 5000 time in 8 hours |
| Integrating Sphere Size | Φ 1,88976 in (Φ48 mm) |
| Sensor | 256 element dual array CMOS image |
| Measurement Length | Wavelength : 400 nm to 700 nm Interval : 10 nm |
| Measurement Diameter | MAV: Φ 0,314961 in or Φ0,393701 in (Φ 8 mm or Φ 10 mm) SAV: 0,15748in or 0,19685 in (Φ 4 mm or Φ 5mm) |
| Measurement Range | 0% to 200% |
| Illumination | 5/0 (45 annular uniform illumination 0° reception) |
| Bandwidth | 10 nm |
| Dimension | 7,24409 in x 3,0315 in x 4,13386 in (184 mm x 77 mm x 105 mm) |
| Weight | 1.32lb (600 g) |
