Overview

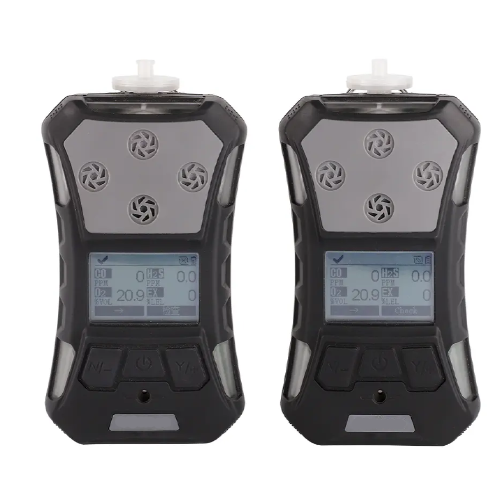

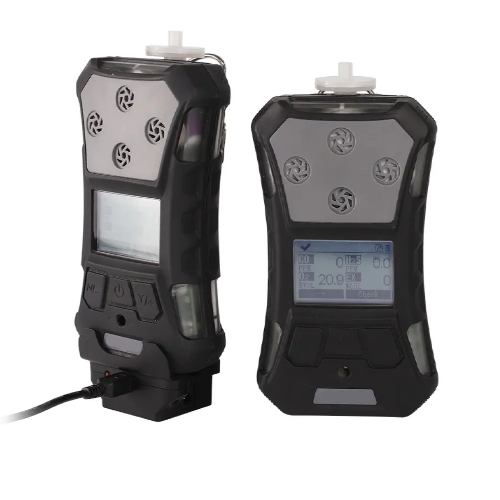

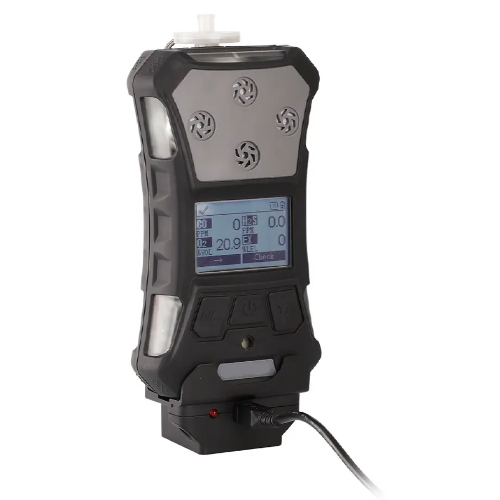

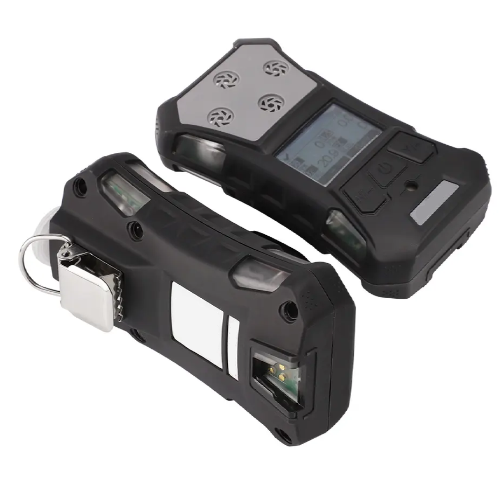

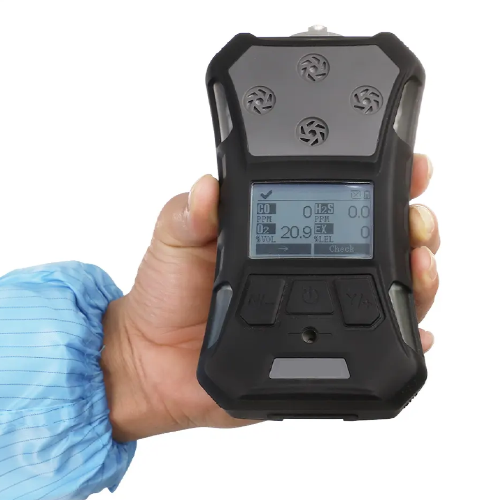

Enviro Test Construct CO gas meter – Bluetooth enabled is an advanced portable gas detector designed to detect multiple gases. It features user-friendly options like one-key security detection, storage, automatic image flipping, and a man-down alarm. Safety personnel can access real-time data and alarms via optional Bluetooth. While it usually operates in suction mode, it can seamlessly switch to diffusion sampling in emergencies or air pump failures, greatly enhancing safety measures.
Features
- It can detect 1-4 gases at the same time
- IECEX ATEX explosion-proof certification
- IP68 protection level
- Bluetooth transmission
- Three-meter drop resistance
Technical Specifications
| Sampling Method | Internal pump |
| Measure Range | 0 % VOL to 30 % VOL, 0 % LEL to 100 % LEL, 0 PPM to 500 PPM, 0 PPM to 100 PPM |
| Battery Type | Lithium polymer |
| Battery Operating Voltage | 3.7 Volt |
| Battery Current | 2200 mA |
| Display | Monochrome graphics (160 x 96), the screen can be automatically flipped |
| Resolution | 0.01 % VOL, 1 % LEL, 1 PPM, 0.1 PPM, 0.1 PPM |
| Repeatability | ≤ ± 1 % |
| Humidity | 0 % RH to 90 % RH |
| Alarm Mode | Sound, light and vibration |
| Pressure | 12.47 PSI to 15.37 PSI (0.86 Bar to 1.06 Bar) |
| Precision | ≤ ± 2 % F.S except for special gases |
| Zero shift | ≤ ± 1 % (F.S / year) |
| Response Time | ≤ 10 Seconds |
| Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds and data can be exported, with data cable. |
| Recovery Time | ≤10 seconds |
| Linearity error | ≤ ± 1 % |
| Degree of protection | IP 67 |
| Explosion-Proof | IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga |
| Temperature | -4 °F to 122 °F (-20 ℃ to 50 ℃) |
| Size | 6.18 in x 3.33 in x 2.34 in (15.7 cm x 8.45 cm x 5.95 cm)
|
| Weight | 12.87 oz (365 g) |
