Overview

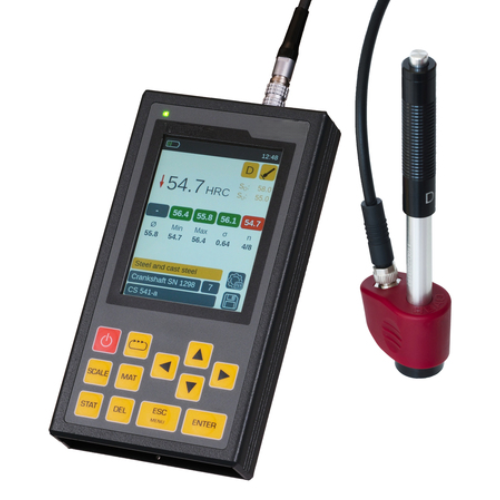

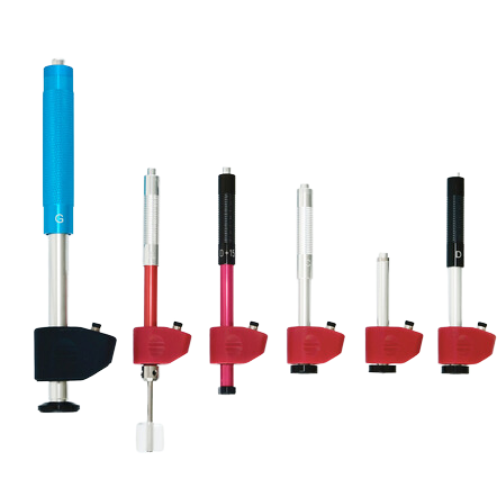

The Enviro Test Construct advanced digital hardness tester with USB-C and Li-ion battery works according to the Leeb rebound hardness test method for metallic materials. The advanced digital hardness tester with USB-C and Li-ion battery combines easy operation with high precision and reliability. For different applications, six impact device types are available. The type of the connected impact device is identified automatically.
Features
- Fast and easy hardness testing
- Measuring method according to DIN 50156, DIN EN ISO 16859 and ASTM A956
- Robust metal (aluminum) casing
- Large colour display
- Embedded Li-ion battery
- 12 groups of materials
- Extensive storage and statistical functions
- USB-C interface
Technical specifications
| Measuring method | According to DIN EN ISO 16859 and ASTM A956 |
| Test materials | 12 material groups |
| Specimen requirement | Minimum weight of test specimen on stable support: 2 kg |
| Hardness scale | HRC, HB, HV, HRB, HL, HS and tensile strength |
| Display | 3.5 in (8.89 cm)TFT-LCD color display, 640 x 480 Pixels |
| Statistics | Average value, standard deviation, minimum, maximum |
| Data memory | > 1 Mio. data records with date, time, GOOD/BAD rating, and impact direction |
| Interface | USB-C |
| Data transfer | Direct protocol printout with mini thermal printer |
| Data transfer on USB flash device | |
| Power supply | Integrated rechargeable lithium-ion battery, 6800 mAh |
| Charging | By charging adapters or by PC-USB |
| Operating time | Approx. 12 h |
| Temperature range | Operation: 5°F to 140 °F (-15°C to 60°C) |
| Storage: -4°F to 158 °F (-20°C to 70°C) | |
| Charging: 32°F to 104 °F (0°C to 40 °C) | |
| Dimensions | 6.06 in × 3.31 in × 0.91 in (15.4 cm x 8.4 cm x 2.3 cm) |
| Weight | 15.17 oz (430 g) |
