Overview

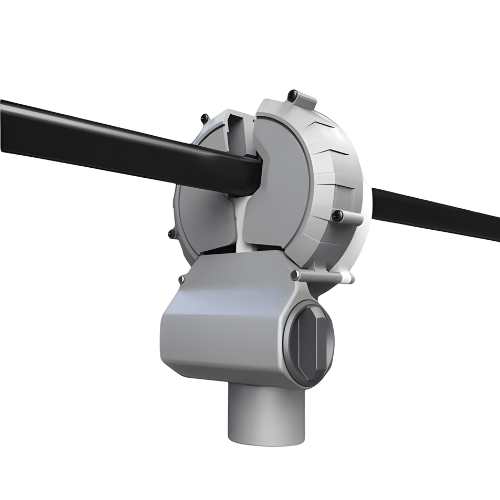

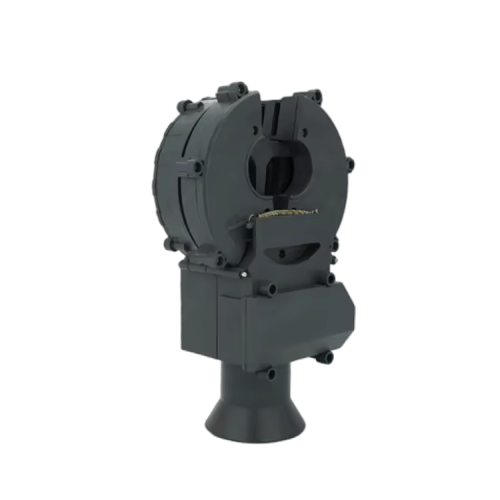

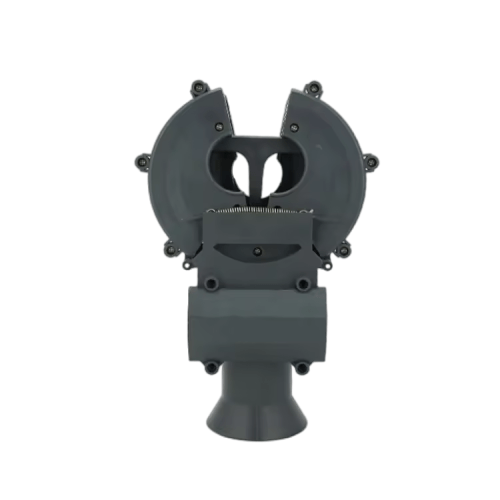

Enviro Test Construct ac wireless clamp meter uses the same sensor technology as the original rogowski coil. The true RMS inductive sensor does not use magnetic materials. The opening of the sensor is electronically closed, and external currents are electronically rejected. The accuracy, external current reject, and range of currents measured by the patented amp sensor substantially exceed the performance of the best clamp-on sensors. The key feature of the unit is the ability to leave it deployed on the line to record readings every 15 minutes for 90+ days. It easily attaches to the line with a standard insulating bar. Once on the line, it immediate begins to collect and record the primary current on the line. It is equipped with a 433M wireless port for communicating the recorded data into the user’s PC. The data is downloaded through GF2015S PC-Link Software, which allows the user to download, view and query the data stored on the Primary current recorder. The housing of it is made of ABS+PC and is built to operate safely, even in severe utility environments. It is resistant to shock, repels water and is unsusceptible to flame. It also operates within a wide temperature range. It has the screw insulation bar of installation, which allows it to hang on the line securely in all weather conditions. PC-Link Software is a user-friendly software interface that allows the user to download, view, graph and export data from it into Microsoft Excel. The data directly transfers from it into Excel through a 433M Port.
Features
- Collect and analyse load profiles
- Easily clamps to the line in seconds
- Check for load balance
- Patented open CT sensor with ± 1 % accuracy
- 433 M communication with no annoying cables to connect
- Recorded data quickly downloads into the user’s PC
- PC-Link Software interface downloads directly into Microsoft Excel
- Generate reports and create graphs for profile analysis
Technical Specifications

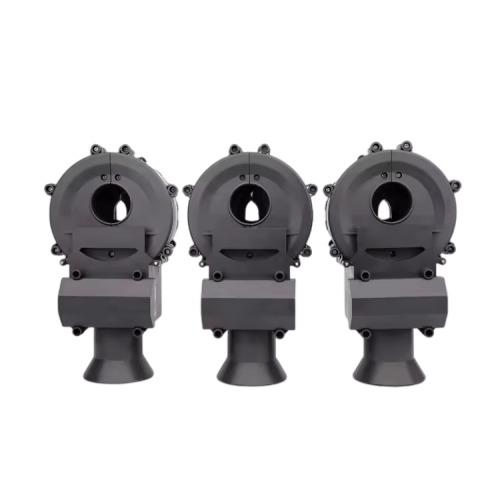

| Recording ammeter kit | 3 wireless current sensors (GF2015A, GF2015B, GF2015C), 433 HHT (handheld terminal) or 433M wireless data reader (GF2015R), PC-Link Software (GF2015S), Carrying case |
| Data recording interval | 5 minutes, 10 minutes, 15 minutes, 30 minutes, Interval user settable from 1 minutes to 60 minutes |
| Communication distance(wireless) | 0.06 mi (100 m) |
| Communication | 433 M, 868 M or 915 M (option) |
| Installation | Installation with electricity, Disassemble with electricity |
| Battery | 3.6 V lithium battery,19000 mAh, Battery can be replaced |
| Software requirements | PC-Link software & micro soft Excel |
| Processor | 100 MHz or higher (200 MHz or higher recommended) |
| RAM | 32 MB, 64 M recommended |
| Drive space | 15 MB to load software, 10 MB of operating Space |
| Use of position | Outdoor or indoor |
| Voltage | 69 kV, 35 kV, 20 kV, 10 kV, 6 kV |
| Current | 1 A to 100 A, 1 A to 300 A, 1 A to 600 A, 1 A to 1000 A, 1 A to 2000 A |
| Sensor opening | Up to 0.9 in (2.5 cm) |
| Resolution for 1 A to 99.9 A | 0.1 A |
| Resolution for 100 A to 2000 A | 1 A |
| Amps accuracy | ± 1 % of reading plus 2 counts |
| Frequency | 60 Hz (57 Hz to 63 Hz) or 50 Hz (47 Hz to 53 Hz) models available |
| Operating temp. | -40 °F to 140 °F (-40 °C to 60 °C) |
| Dimensions | 7.0 in x 3.7 in x 1.8 in (18 cm x 9.5 cm x 4.62 cm) |
| Weight (kg) | 1.2 lb (0.58 kg) |
