Overview

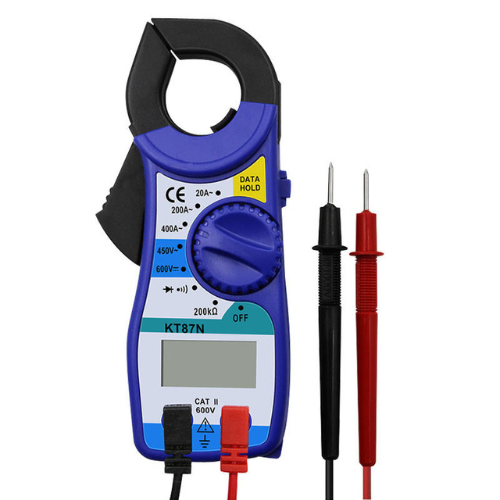

Enviro Test Construct’s digital clamp multimeter with AC/DC voltage & current testing is a versatile, portable measuring instrument designed for both professional and DIY electrical applications. This product can accurately measure DC voltage up to 600V, AC voltage up to 450V, AC current between 20A and 400A, and resistance up to 200KΩ.
Features
- Measures DC voltage, AC voltage, AC current, resistance, on-off buzzer/diode, etc.
- Large jaw opening design, the jaws of the clamp meter can be opened up to 30mm.
- Movable opening, and a clamp on the ammeter, named. The utility model relates to a portable instrument
Technical Specifications
| Product Material | Plastic, Electronic Parts |
| Product Color | Blue |
| DC Voltage | 600V, ± 2.0% |
| AC Voltage | 450V, ± 2.0% |
| AC Current | 20 A to 400 A, ± 3.0% |
| Resistance | 200 KΩ, ± 1.5% |
| Battery Type | 2 x 1.5V (AAA Battery) – Not Included |
| Additional Functions | Continuity buzzer, diode testing, data hold, large LCD display |
| Jaw Opening Size | 1.18 in (30 mm) |
| Working Environment | 32 °F to 122 °F (0 °C to 50 °C) |
| Product Weight | 6.56 oz (186 g) |
| Dimensions | 7.48 in x 3.94 in x 1.18 in (190 mm x 100 mm x 30 mm) |
