Overview

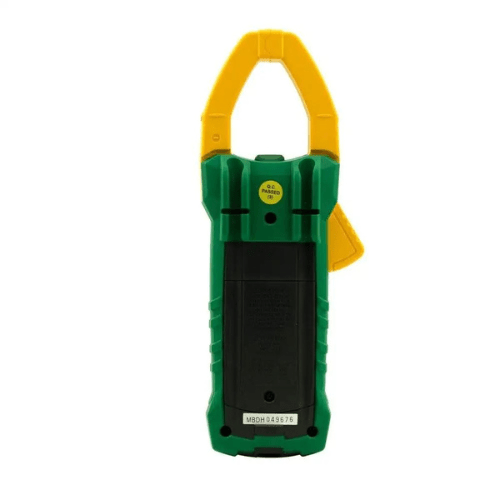

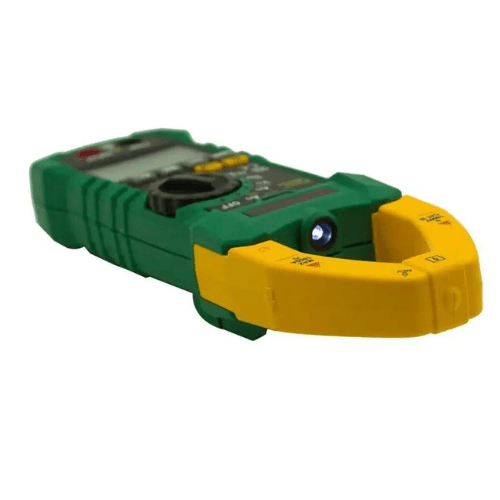

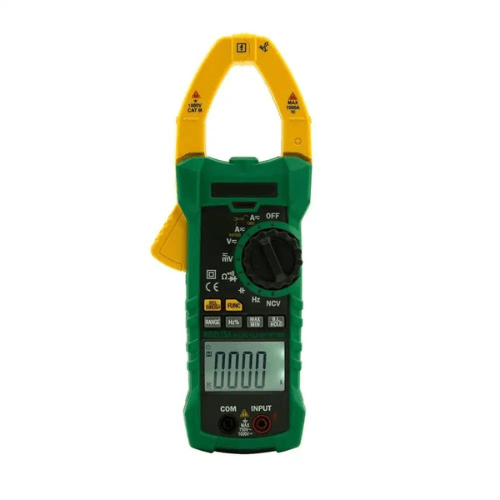

Enviro Test Construct Advanced Clamp Meter has DC or AC current measurement up to 1000A, Tests AC or DC voltage and current, resistance, capacitance, frequency and duty cycle, Built-in Non-contact voltage detector, True RMS for AC voltage and AC current, Diode check and continuity test.
Features
- LCD with 5999 counts
- Jaw size up to 1.57 in (40 mm) or (4.064 cm) 1.6 in
- DC or AC current measurement up to 1000 A
- Tests AC or DC voltage and current, resistance, capacitance, frequency
- Built-in non-contact voltage detector
- True RMS for AC voltage and AC current
- Work light and Auto power off
- Diode check and continuity test
Technical Specifications
| Specification | Range |
| DC Voltage | 60mV/600mV/6V/60V/600V |
| 600mV/6.6V/66V/660V | |
| 1000V | |
| AC Voltage | 60mV/600mV/6V/60V/600V |
| 600mV/6.6V/66V/660V | |
| 750V | |
| DC Current | 60A/600A/1000A |
| 66A/660A/1000A | |
| AC Current | 60A/600A/1000A |
| 66A/660A/1000A | |
| Resistance | 600ohm/6kohm/60kohm/600kohm/6Mohm |
| 60Mohm | |
| 660ohm/6.6kohm/66kohm/660kohm/6.6Mohm | |
| 66Mohm | |
| Capacitance | 10nF/100nF/1000nF/10uF/100uF/1000uF/10mF/100mF |
| 6.6nF/66nF/660nF/6.6µF/66µF/660µF/6.6mF/66mF | |
| Frequency (From Clamp) | 0 to 10KHz |
| Logic Frequency | 0 to 60MHz |
| 0 to 66MHz | |
| Duty Cycle | 10% to 90% |
| Display | 6000 counts |
| Jaw Opening | 40mm/1.6 |
| Auto Ranging | Yes |
| Manual Ranging | Yes |
| Auto Power Off | Yes |
| REL | Relative measurement |
| Diode | 2.7 V |
| Continuity Buzzer | <50 ohm |
| MAX/MIN | Yes |
| Data Hold | Yes |
| Display Backlight | Yes |
| Low Battery Display | Yes |
| Flash Light | Yes |
| True RMS | True root mean square measurement |
| NCV | Non-contact voltage detector |
| Inrush | Inrush current measurement |
| USB interface | Windows OS |
| Power Supply | 1 x 9 V 6F22 Battery |
| Category | CAT.III1000V CAT.IV600V |
| Product Weight | 0.9 lbs. (400 g) |
| Product Size | 9.3 in x 3.6 in x 2.0 in (238 mm x 92 mm x 50 mm) |
