Overview

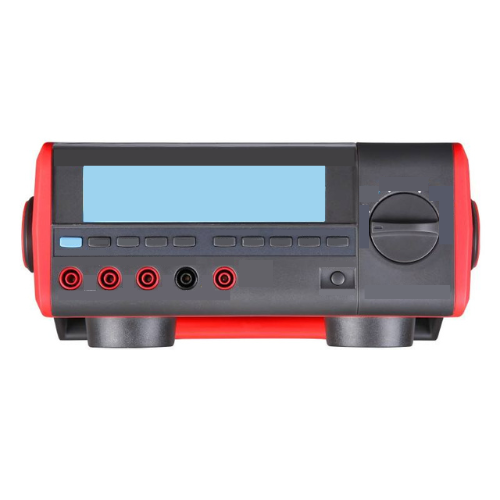

High-accuracy benchtop digital multimeter with True RMS, auto-range, data storage, USB & RS-232 connectivity, and advanced input protection for lab use.
Features
- High-resolution digital display with wide measurement range
- Auto-ranging functionality for faster and easier testing
- True RMS for accurate results in different waveforms
- Built-in continuity buzzer and diode testing functions
- MAX or MIN and data hold for convenient measurement tracking
- Multiple data storage and recall options for analysis

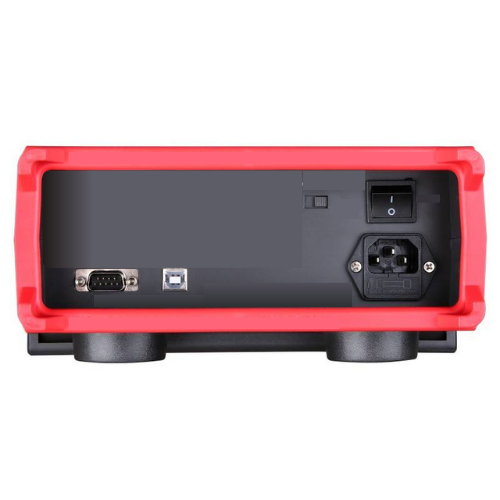

- USB and RS-232 connectivity for external device communication
- Dot-matrix LCD with backlight for clear visibility
- Rugged industrial grade build with reliable input protection
Technical Specifications
| Display Count | 200000 |
| DC Voltage Accuracy | ±(0.015%+3) |
| AC Voltage Accuracy | ±(0.2%+100) |
| DC Current Accuracy | ±(0.03%+10) |
| AC Current Accuracy | ±(0.3%+100) |
| Resistance Accuracy | ±(0.02%+6) |
| Capacitance Accuracy | ±(2%+5) |
| Frequency Accuracy | ±(0.1%+3) |
| DC Voltage Range | 200mV to 1000V |
| AC Voltage Range | 200mV to 750V |
| DC Current Range | 2mA to 10A |
| AC Current Range | 2mA to 10A |
| Resistance Range | 200Ω to 20MΩ |
| Capacitance Range | 6nF to 6mF |
| Frequency Range | 10Hz to 60MHz |
| Bandwidth | 100kHz |
| Diode Test | Yes |
| Continuity Buzzer | Yes |
| Data Hold | Yes |
| Relative Mode | Yes |
| MAX/MIN Function | Yes |
| Data Storage Capacity | 100 records |
| Data Recall | Yes |
| RS-232 Interface | Yes |
| USB Interface | Yes |
| LCD Backlight | Yes |
| Dot-Matrix LCD | 256 x 64 pixels |
| Input Protection | Yes |
| Input Impedance for DCV | 2V range: around 10GΩ, other ranges: around 10MΩ |
| Measurement Types | AC + DC Voltage and Current |
| Power Supply | AC 220V / 50Hz |
| Fastest Test Rate | 2 to 3 readings per second |
| Reading Resolution | 4 3/4 digits |
| Frequency Response | 100kHz |
| Accuracy of DC Voltage | ±0.025% |
| Dimensions (W x H x D) | 11.81 in x 4.13 in x 9.65 in (300 mm x 105 mm x 245 mm) |
| Weight | 7.05 lb (3.2 kg) |
