Overview

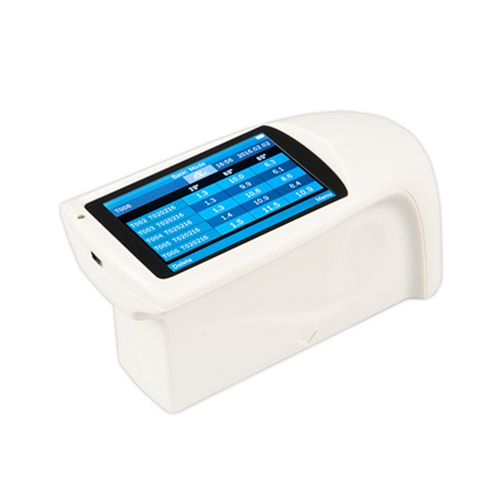

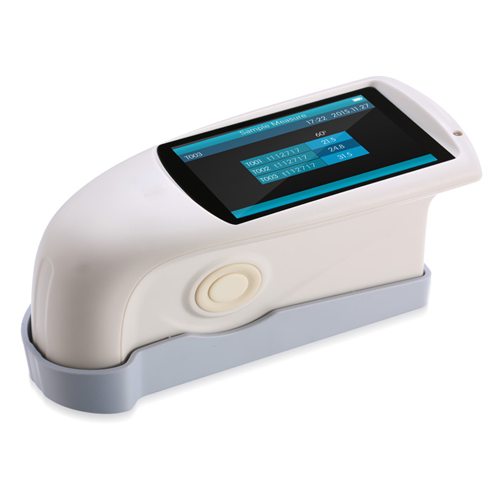

Enviro Test Construct Gloss Meter with 20/60/85-degree gloss meter features 20, 60, and 85° angles, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523 and ASTM D2457. This conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source. Enviro Test Construct gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Features
• 20, 60, and 85° in one: from high to low gloss to have the specified angle on hand
• One button for all angles measurement at the same location
• Display 5 sets of measurement data, good for comparison
• Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
• Continuous mode to check uniformity over large areas
• Connect to PC, more extended functions
• Input gloss value manually
• Large touch screen operation, easy to use
• Beauty appearance, a good man to machine communication interface
• Powerful functions to meet many different requirements
• Large storage to save over 5000 data
• Built lithium to ion rechargeable battery.
Technical Specifications
| Measuring Angle | 20°/60°/85° Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Measuring Area (mm) | 20°: (10 mm x 10 mm) 60°: (9 mm x 15mm) 85°: (5 mm x 36mm) |
| Division Value | 0.1GU |
| Measurement Range Repeatability Reproducibility |
0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU |
| Measurement Standard | Conform with JJG696 first class gloss meter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.2, ± 1.2% |
| Measuring Time | 1.0s |
| Weight | 0.77 lb. (0.35 Kg) |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery,>10000 times (within 8 hours) |
| Display | TFT 3.5-inch, capacitive touch screen |
| Interface | USB/RS-232 |
| Storage | Basic mode: 1000; Statistical Mode: 5000, Continuous mode: 5000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 32 °F to 104°F (0 ºC to 40 ºC) |
| Storage Temperature | -4 °F to 122 °F (-20 ºC to 50 ºC) |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice |
