Overview

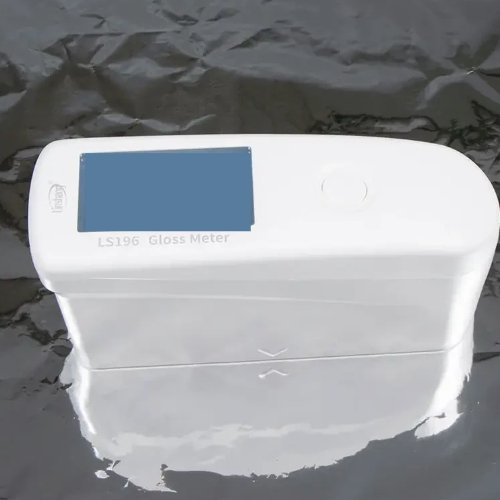

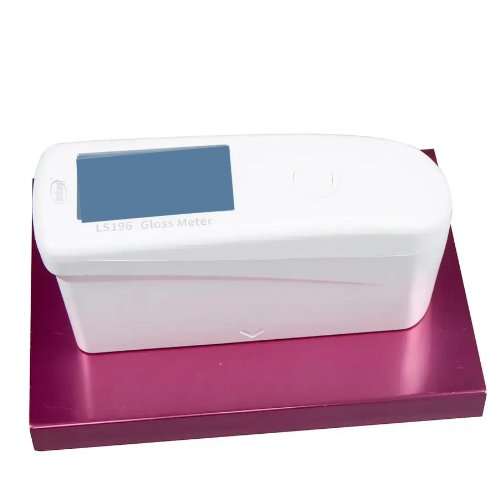

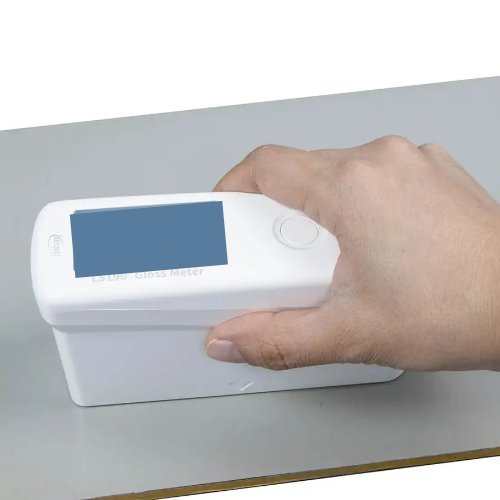

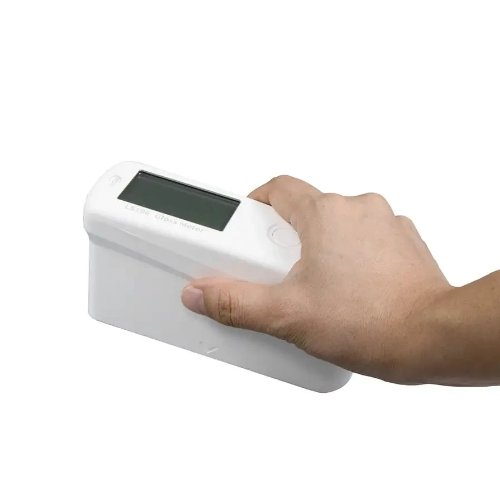

Enviro Test Construct The Gloss Meter is a handheld gloss meter. Thanks to its ivory white engineering housing, its appearance is simple and generous. It features 60 ° universal angle design, and its measuring range can reach to 1000 GU. The device supports normal mode and QC mode. In QC mode, it can automatically determine whether the gloss of the material is qualified, thus the measurement efficiency is improved. It is professionally used for the surface gloss measurement of paints, coatings, inks, plastics, ceramics, stones, metals, and other materials.
Technical Specifications
| Measuring Angle | 60 ° |
| Measuring Aperture | 0.35 in x 0.59 in (9 mm x 15 mm) |
| Minimum Test Material Size | 0.78 in x 0.39 in (20 mm x 10 mm) |
| Measuring Range | 0 to 1000 GU |
| Resolution | 0.1 GU |
| Repeatability | 0 to 100 GU:±0.2 GU 100 to 1000 GU:±0.2% |
| Reproducibility | 0 to 100 GU:±0.5 GU 100 to 1000 GU:±0.5% |
| Zero Error | 0.1 GU |
| Indication Error | 0 to 100 GU:±1.5 GU 100 to 1000 GU:±1.5% |
| Power Supply | Lithium rechargeable battery 3.7 V@650 mAh |
| Display | 240 × 128 Dot Matrix |
| Lan Gauge | Simplified Chinese, English |
| Charge Port | USB(Type-C) |
| Data Transmission | USB |
| Size (H x W x D) | 5.51 in x 1.88 in x 2.95 in (140 mm x 48 mm x 75 mm) |
| Weight | 0.52 lb (237 g) |
| Working Temperature | 50 °F to 113 °F (10℃ to 45℃),0 to 85%RH (no condensation) |
| Storage Temperature | 14 °F to 140 °F (-10℃ to 60℃),0 to 85%RH (no condensation) |
