Overview :
Enviro Test Construct Gloss meter can be applicable in coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials, stoving varnish, vitrified polished tile. While if your sample is cambered or small parts, please don’t worry, with small aperture (1 mm x 3mm) can easily solve your problem.
Features :
- Apply on paint, ink, stoving varnish, coating, wood products
- Automatic/ manual /single
- average and combinationangle
- set standard sample in any stored data, user-define the tolerance range
- Power adapter/User manual
- Warranty card standard board
- Are normally used on flat or wide arc surface samples
Technical Specifications :
| Model | ETCGLS-107 |
| Measurement Range | 0-2000 Gu |
| Application | Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
| Projection Angle | 20° 60° 85° |
| Measuring Spot | 0.55118 in x 2.40157 in (14 mm * 61mm) |
| Measuring Mode | Automatic/ manual /single /
Average and combination angle |
| Standard Sample Setting | Manually setting/bring out stored data for setting/manually setting tolerance |
| Data Storage | 500 groups |
| Language | Chinese/English |
| Output | Software to PC |
| Division Value | 0-1000: 0.1 Gu/1000-2000:1 Gu |
| Repeatability | 0-100:0.2>100:0.2% |
| Reproducibility | 0.2 Gu |
| Indication Error | 1.5 Gu |
| International Standard 60° | ISO-2813/ASTM-C584/ASTM-D523/DIN-67530/ASTM-D2457/JND-A60/JND-P60/ISO7668 |
| Working Temperature | 10 ℃ to 40 ℃ (50 ℉ to 104 ℉) |
| Storage Temperature | -10 ℃ to 70 ℃ (14 ℉ to 158 ℉) |
| Humidity Range | Relative humidity less than 85%, without condensation |
| Volume | 4.80315 in * 1.33858 in * 2.36220 in (122 mm * 34 mm * 60mm) |
| Weight | 0.6826722 lb (0.31 kg) |

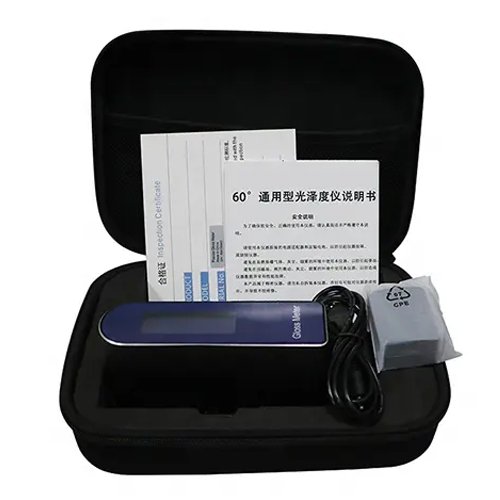

| Standard Accessories | Power adapter/User manual /Warranty card / Standard board / Add usb cable GlossW software
|
