Overview
Enviro Test Construct Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics, building materials and so on. Our gloss meter confirm to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on.
Features
- High Precision:
Our gloss meter adopts sensor from Japan, and processor chip from the US to ensure highly precise of the measured data.
Our gloss meters conform to JJG 696 standard for first class gloss meters. Every machine has metrology accreditation certificate from State Key Laboratory of modern metrology and testing instruments and engineering centre of the Ministry of Education in China. - Super Stability:
Every gloss meter made by us has done the following test:
412 calibration tests;
43200 stability tests;
110 hours of accelerated aging test;
17000 vibration test - Comfortable Grab Feeling:
The shell is made by Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and do not cause allergy. This design is for better user experience. - Large Battery Capacity:
We fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mAH , which ensures continuous testing for 54300 times.
Technical Specifications:
| Model | ETCGLS-105 |
| Test Angle | 20°,60°,85° |
| Test light spot(mm) | 20°: 0.3937 inx0.3937 in (10 mmx10 mm) 60°: 0.3543 inx0.5906 in (9 mmx15 mm) 85°: 0.1969 inx1.4961 in (5 mmx38 mm) |
| Test range | 20°: 0-2000 GU 60°: 0-1000 GU 85°: 0-160 GU |
| Resolution | 0.1GU |
| Test modes | Simple mode, standard mode and sample testing mode |
| Repeatability | 0 to100 GU:0.2 GU 100 to 2000 GU:0.2% GU |
| Accuracy | Conform to JJG 696 standard for first class gloss meter |
| Test time | Less than 1s |
| Data storage | 100 standard samples; 10000 test samples |
| Size(mm) | 6.4961 in x 2.0079 in x 3.0315 in (165 mm x 51mm x 77mm) |
| Weight | About 0.8818 lb (0.4 kg) |
| Language | Chinese and English |
| Battery capacity | 3000 mAh lithium battery |
| Port | USB (optional) |
| Upper-PC Software | Include |
| Working Temperature | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
| Working Humidity | <85%, no condensation |

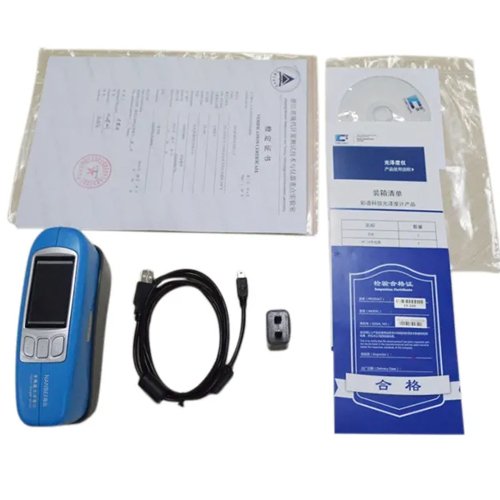

| Accessories | 5 V/2 A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification |
