Overview

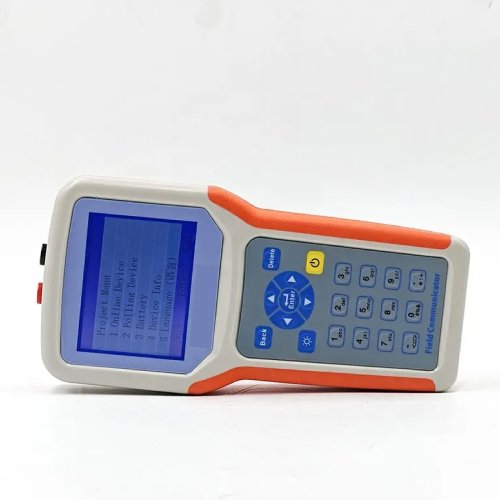

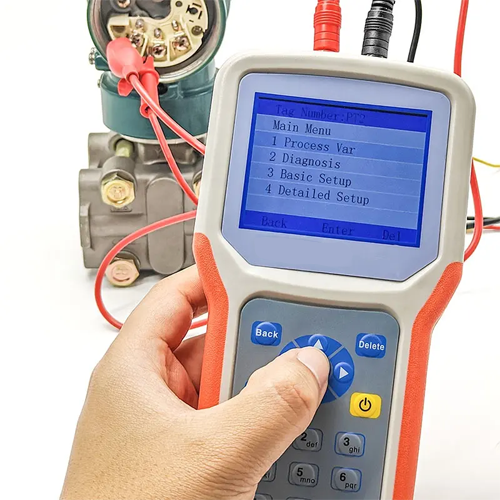

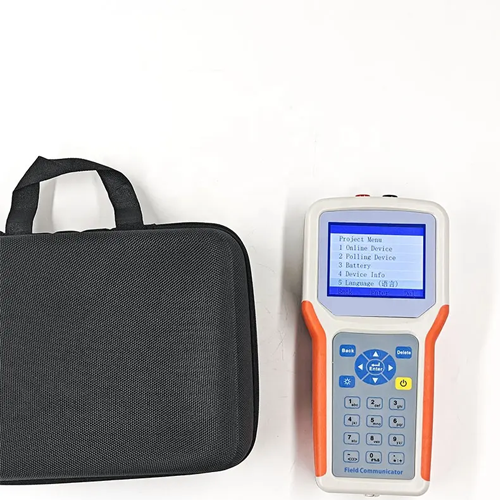

This Communicator for Pressure Temperature Transmitter Calibration has the temperature ranging from 32 °F to 122 °F, a lithium battery, and an LCD.
Features
- During the online monitoring and communication, the modulation signal will not interrupt 4 mA to 20 mA DC signal
- Self-diagnosis / protection function
- Full function communication: flow meter, temperature meter, transmitter
- Large screen display imported LCD screen
- Read the output current and the process variable
- Get the parameters and output the value of the sensor
Technical Specification
| Storage temperature | -4 °F to 131 °F (-20 °C to 55 °C) |
| Single gross weight | 4.40 lb (2 kg) |
| Power supply | 3.7 V 3100 mA lithium battery |
| Operating temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Usage | Process Testing Machine |
| Size | 10.24 in x 9.45 in x 3.94 in (260 mm x 240 mm x 100 mm) |
