Overview

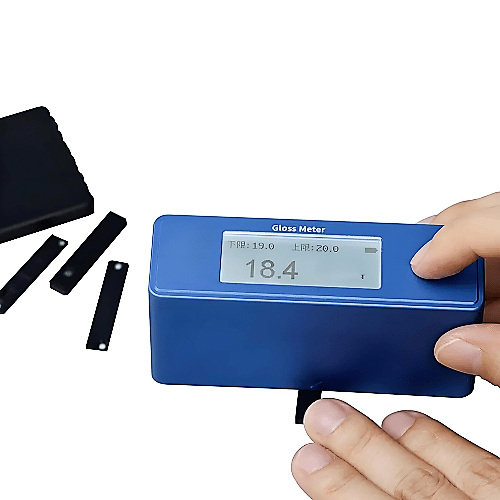

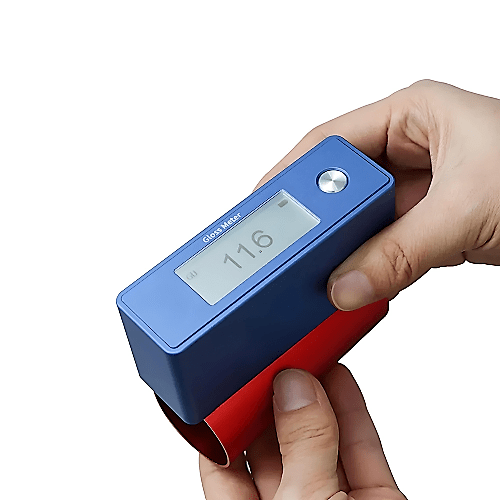

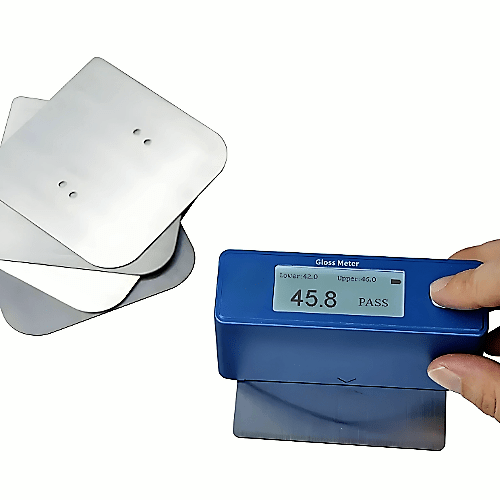

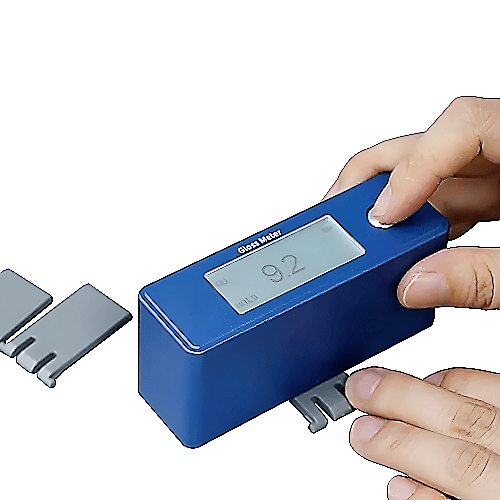

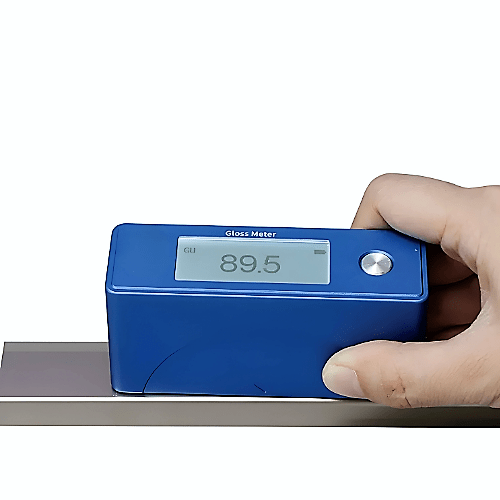

Enviro Test Construct Car Paint Gloss Meter is a hand-held gloss meter with mini measuring aperture, universal angle 60° and range of 1000GU, exclusively applicable to surface gloss measurement on curved or mini size material, easy operation, no need to press button. QC mode is optional to conduct quick QC process. Intelligent data statistics and test report can be generated by connecting PC software.
Features
- Mini measuring aperture, range of 1000GU
- Simple operation
- Precise measurement
- Dual Mode
- Powerful PC software support
- Powerful PC software support
- Stable data
- Standard in the bottom
- Portable and Smart
- Energy-saving, long navigation
Technical Specifications
| Measuring Angle | 60 degree |
| Measurement Range | 0 GU to 1000 GU |
| Resolution | 0.1 GU |
| Repeatability | 0 GU to 100 GU:±0.2；100 GU to 1000 GU:±0.2% reading |
| Reproducibility | 0 GU to 100 GU:±0.5 ; 100 GU to 1000 GU:±0.5% reading |
| Error of Indication | 0 GU to 100 GU:±1.5; 100 GU to 1000 GU:±1.5% reading |
| Zero Error | 0.1 GU |
| Measuring Aperture | 0.35 in x 0.59 in ( 9 mm x 15 mm) 0.06 in x 0.11 in (1.5 mm x 3 mm) |
| Minimum Test Material Size | 0.39 in x 0.79 in (10 mm x 20 mm) 0.11 in x 0.23 in ( 3 mm x 6 mm) |
| Power Supply | rechargeable lithium3.7 V@1000 mAh |
| Working Temperature | 50 °F to104 °F (10 ℃ to 40 ℃) |
| Storage Temperature | 14 °F to 140 °F (-10 ℃ to 60 ℃) |
| Relative Humidity | Less than 85％, no dew |
| Weight | 0.73 lb. (332 g) |
