Overview

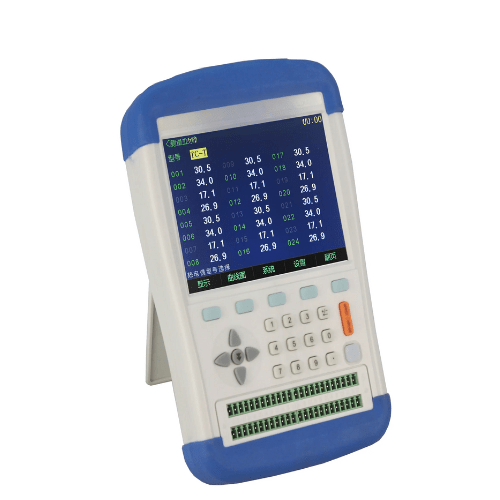

Enviro Test Construct16 channels temperature data logger is the latest handheld temperature curve acquisition instrument on our technology platform. Using high performance ARM microprocessor control ay, let waveform display at a glance. At the same time, multi-channel temperature data can be collected, over Super alarm and communication transmission, and can be extended to more than 128 temperature data, compatible with a variety of temperature sensors, fast response, data stability, at the same time have fault detection function up to 6AH lithium battery power ensures long time acquisition. Offer it free of charge Special collection software. The instrument is equipped with Mini USB interface, and data acquisition, analysis and printing can be realized by standard computer software. USB disk memory is supported to store sampled data. The user can independently calibrate the data for each path.
Technical Specifications
| Basic Accuracy | 0.2% +33.8 °F (1℃) |
| Test Range | -328 °F to 2372 °F (-200 ℃ to 1300 ℃) |
| Resolution | 32.18 °F (0.1℃) |
| Correction | Error correction for each channel |
| Comparator | Overrun alarm, each channel is individually set over a super value |
| Standard Interface | U disk interface, Mini (virtual serial port) |
| Standard Software | Data acquisition software |
| Cold End Compensation | Accuracy: 32.9 °F (0.5 ℃) |
| Other | TFT LCD true colour LCD display, Fault detection function |
| Battery Parameters | 8.4V, Li, 6000mAH rechargeable battery |
| Size | 5.13 in x 8.30 in x 1.49 in (130.23 mm x 210.76 mm x 37.88 mm) |
| Weight | 1.43 lb, 22.9 oz (650 g) |
