Overview

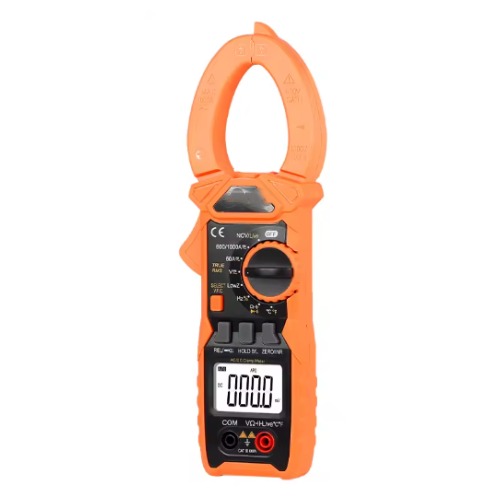

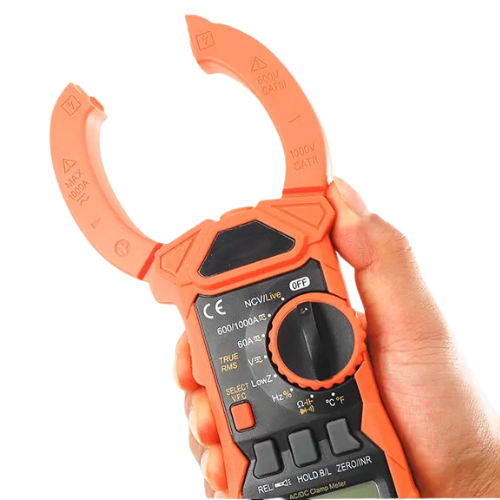

Enviro Test Construct AC/DC Digital Clamp Meter 1000V 1000A True RMS Multimeter is a handheld, battery-powered automatic range device designed for accurate measurement of AC/DC voltage, AC/DC current, resistance, frequency, capacitance, and temperature. It also supports functions like continuity testing, diode checking, inrush current measurement, low pass filter (VFC) testing, and non-contact voltage detection. This product features a 5999-count LCD display, data hold, auto power-off, flashlight, and overload protection, making it suitable for both professional electricians and industrial maintenance work.
Features
- Data retention
- HD backlight
- 5999-digit display
- AC and DC voltage
- Capacitance
- On-off Beeb
- Diode
- Automatic shutdown
- Inductive voltage
- Firewire recognition
- Temperature
Technical Specifications
| Sampling Rate | Approx. 3 times per second |
| Polarity Indication | Automatic negative polarity display |
| Over Range Indication | “OL” displayed on LCD |
| Low Battery Indication | Battery symbol displayed |
| Power Supply | 1.5 V x 2 (AAA size) |
| AC Voltage | 6 V or 60 V ± (1.0% + 10), 600 V or 750 V ± (1.0% + 12) |
| DC Voltage | 600 mV, 6 V, 60 V, 600 V ± (0.5% + 7), 1000 V ± (1.0% + 6) |
| AC Current | 60 A, 600 A, 1000 A ± (4.0% + 10) |
| DC Current | 60 A, 600 A, 1000 A ± (4.0% + 10) |
| Resistance | 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ ± (1.0% +5), 20 MΩ ±(1.5% + 15), 60 MΩ ± (2.5% + 20) |
| Capacitance | 1 nF ± (5.0% + 40), 10 nF to 10 mF ± (5.0% + 10) |
| Frequency | 10 Hz to 10 MHz ± (0.3% + 3) |
| Temperature | -4 °F to 1832 °F (-20 °C to 1000 °C) ± (2.0% + 5) |
| Auto Power Off | About 15 minutes |
| Flashlight | Yes |
| Overload Protection | Yes |
| Live Wire Detection | Yes |
| Inrush Current | Yes |
| VFC (Low Pass Filter) | Yes |
| NCV (Non-Contact Voltage) | Yes |
| True RMS | Yes |
| Jaw Opening | 1.57 in (4 cm) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C), less than 80% RH |
| Storage Temperature | 14 °F to 122 °F (-10 °C to 50 °C), less than 80% RH |
| Dimensions | 9.06 in x 2.95 in x 1.57 in (23 cm x 7.5 cm x 4 cm) |
| Product Weight | 11.04 oz (313 g) |
