Overview

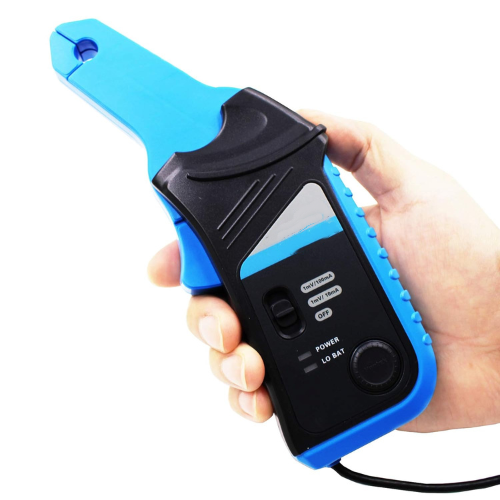

Enviro Test Construct’s AC/DC current clamp meter transducer for multimeters & oscilloscopes is a precision tool designed to measure current data without breaking the circuit or affecting isolation. This device enables a multimeter to measure AC/DC current up to 65A and an oscilloscope to capture current waveforms with frequencies up to 20kHz. Built with a permalloy core and Hall element, it provides accurate linear transformation of current to voltage output.
Features
- AC/DC frequency range: up to 20 KHz.
- Effective measurement range: 20 mA to 65 A DC.
- Allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
- Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage.
- If connect to an oscilloscope by BNC type connector, you’re able to observe the current waveforms.
Technical Specifications
| AC/DC Frequency Range | Up to 20kHz |
| Effective Measurement Range | 20 mA to 65 A DC |
| Sensitivity | 1 mV / 10 mA, 1 mV / 100 mA |
| Conductor Size Capacity | 0.35 in (0.9 cm) |
| Output Connection | BNC plug |
| Special Features | Low battery indicator (LED), linear Hall element design |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Product Weight | 6.5 oz (184 g) |
| Dimensions | 7.67 in x 2.75 in x 1.3 in (19.5 cm x 7 cm x 3.3 cm) |
